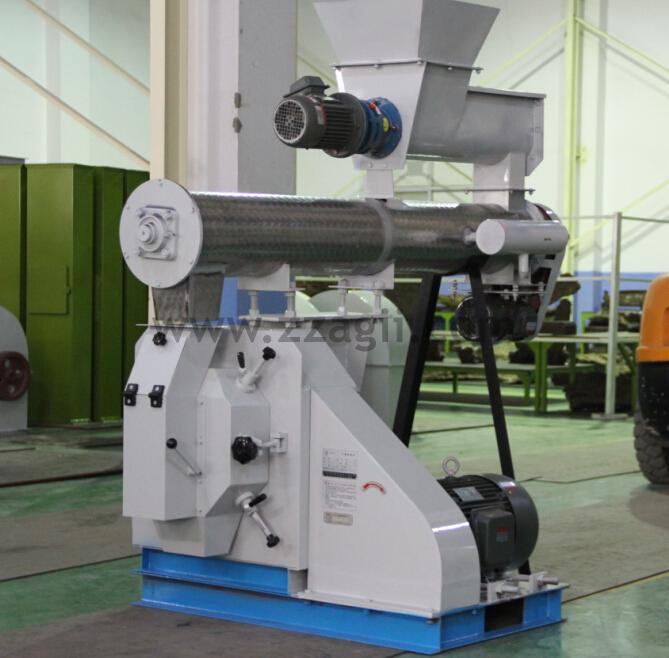

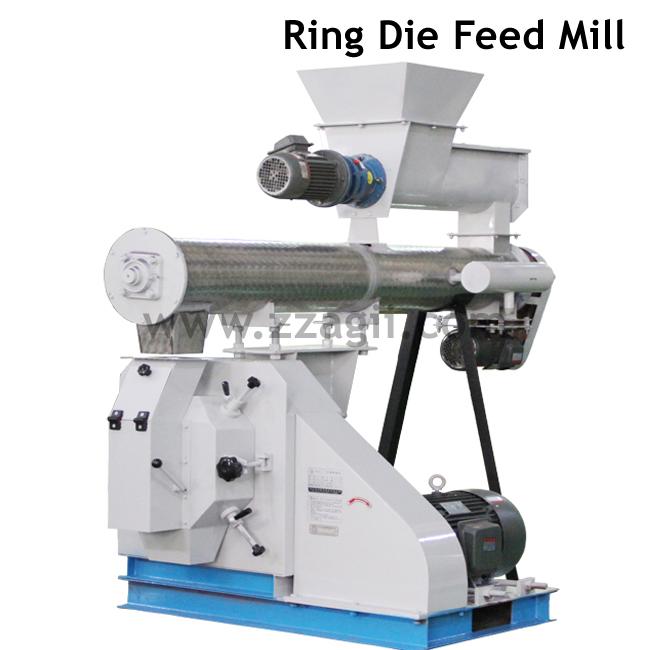

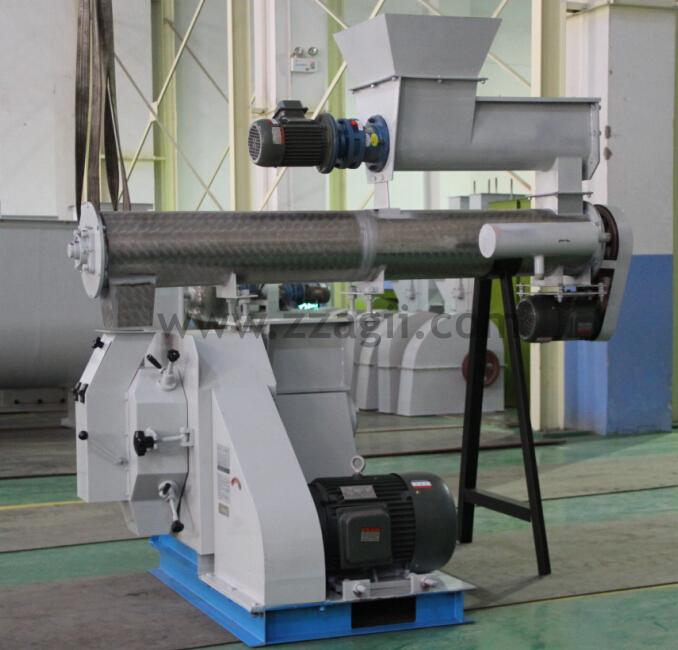

Professional Ring Die Animal Feed Pellet Making Machine

  • Model: SZLH-30C
  • Output: 1500-2000kg/h
  • Power: 30kw
  • Conditioner Power: 1.1kw
  • Product description:Manufacturer of Professional Ring Die Animal Feed Pellet Making Machine for sale
  • INQUIRY

Introduction:

CM Series Ring Die Feed Pellet Machine is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for chemical industry, fertilizer industry and sugar industry.


Features


  • SZLH series C type ring die pellet mill reaches international advanced level; it has the latest technology and low breakdown rate;
  • On the basis of Type B pellet mill, steam conditioning device and variable speed motor is added to raw material conveying to control the feeding, the feeding is steady and reliable;
  • Enlarged stainless steel conditioner can provide long time conditioning and curing.
  • Single-layer, dual-layer and multiple-layer jacket conditioner or double-shaft differencial diameter conditioner can be configured to meet different production demands of high grade livestock and poultry feeds and aquatic feeds;
  • Drive mechanism adopts high strength belt, with steady running and low noise;
  • Drive mechanism adopts high quality bearing to ensure high speed and stable operation;
  • Feeding part is equipped with a permanent magnet to remove metallic impurities; this prolongs the service life of main parts and meanwhile reduce the use of auxiliary equipment.

Model No.

SZLH-20C

SZLH-25C

SZLH-30C

Output (kg/h)

600-800

1000-1500

1500-2000

Power (Kw)

11

22

30

Feeding+Conditioner motor(KW)

0.75+1.1

0.75+1.1

0.75+1.1

Revolving Speed of ring die (r/min)

306

306

330

Inside diameter of ring die(mm)

200

250

304

Pellet diameter(mm)

Φ1.5Φ2Φ2.5Φ3Φ3.5Φ4Φ5Φ6Φ8

Dimension(m)

1.1*1.86*1.6

1.1*1.86*1.6

1.35*1.88*1.65

Weight (kgs)

720

900

1035
