Biomass Briquette Machine Charcoal Briquette Making Machine

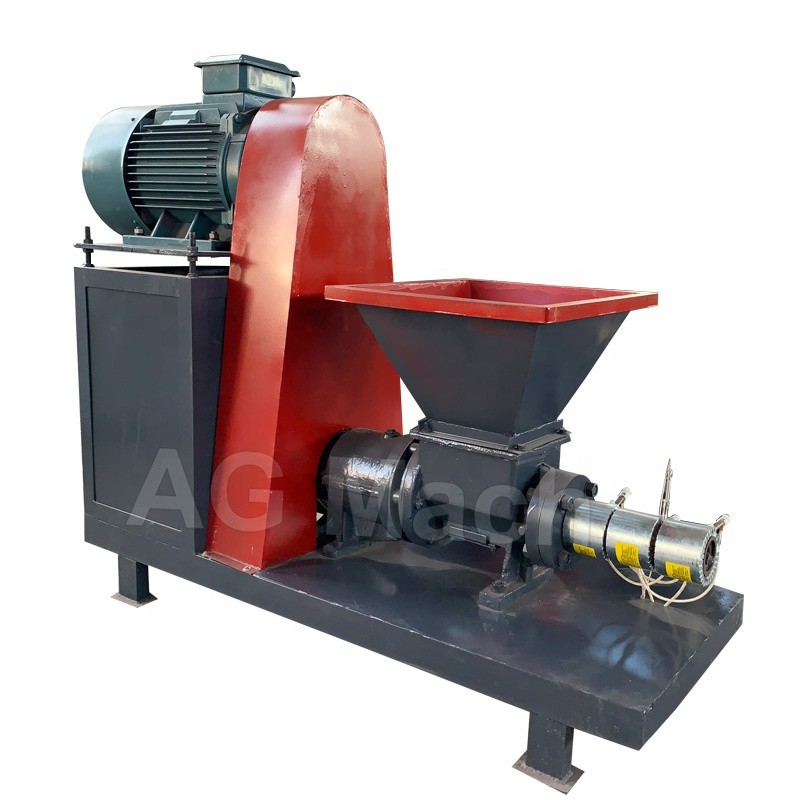

Introduction of Screw Briquette Machine:


The briquette making machine is the main equipment to make stick solid fuel with such wood material as

bits of wood, rice shell,coffee husk,peanuts shell, bagasse,etc.


The raw material will be formed into fuel under high pressure and at high temperature. It adopts temperature

adjusting indicator, it can work steadily at the fixed temperature and has the feature of rational structure,

being easy to operate and maintain.


The solid fuel produced by this machine has the feature of being easy to light,

and having high calorific value, little pollution when burning and high density which is favorable to transportation.



Technical Parameter:

Model


ZBJ-50A

ZBJ-50B

ZBJ-50C

Capacity (kg/h)


250~300

300~350

350-400

Motor (kw)


18.5

22

30

Diameter of briquettes (mm)


Ø 48

Ø 48

Ø 48

Dimension (m)


1.6*0.65*1.65

1.62*0.65*1.80

1.80*0.7*1.73

Weight  (kg)


590

750

900

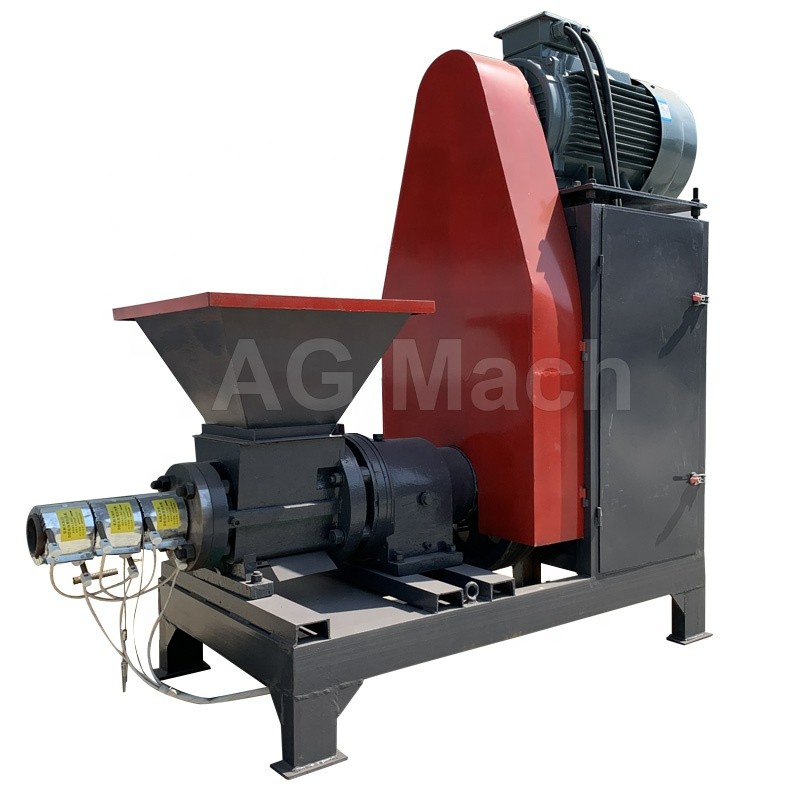

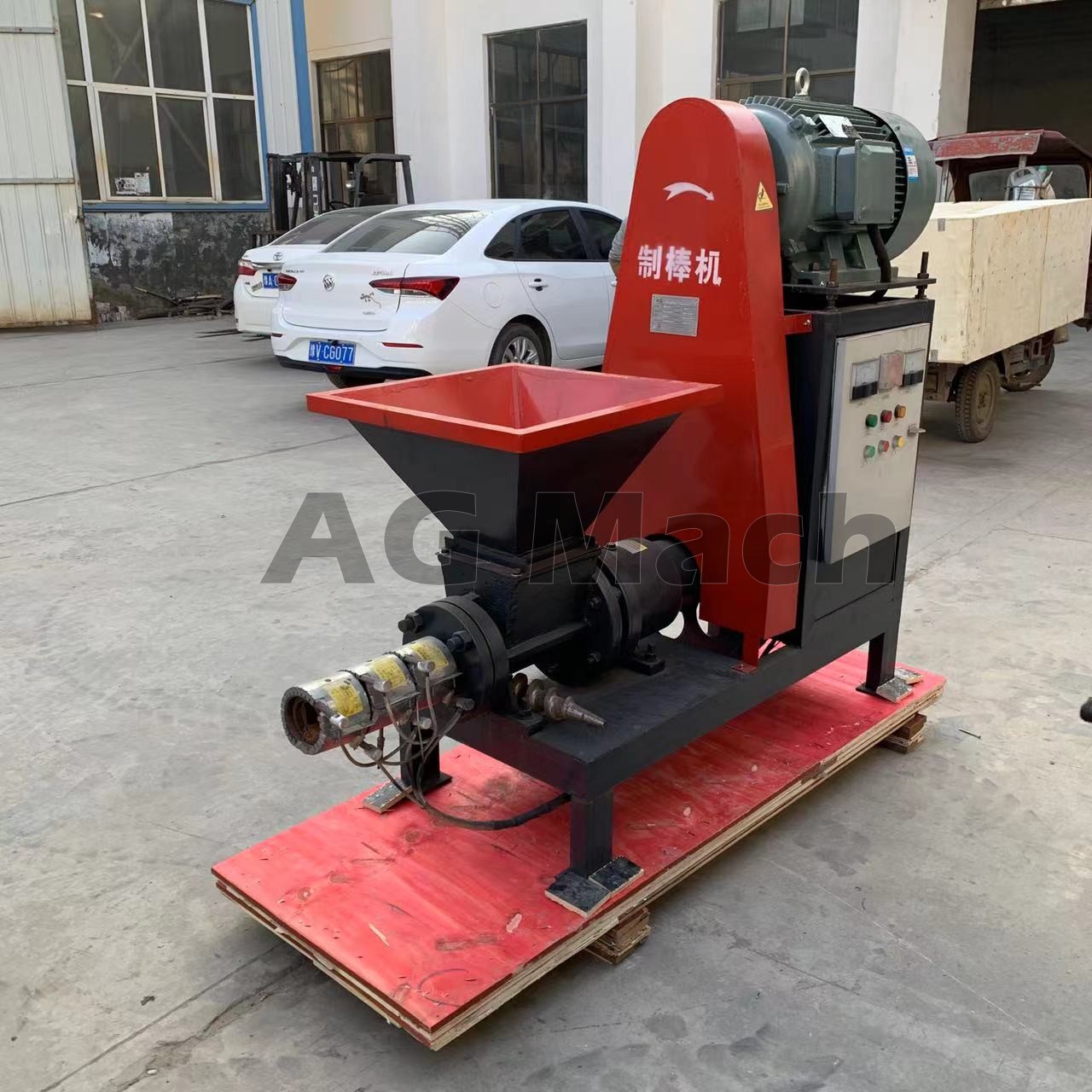

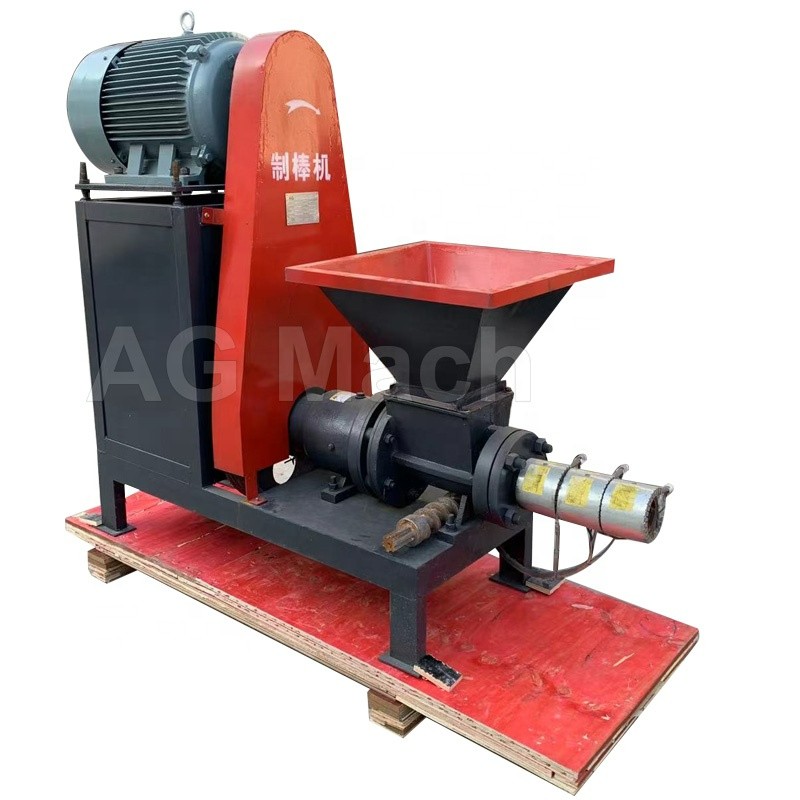

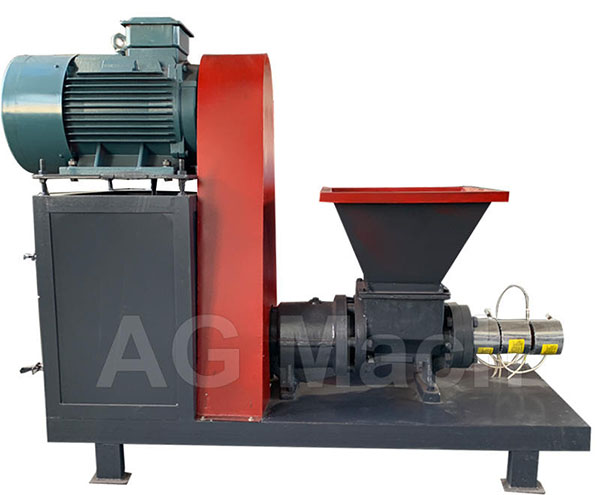

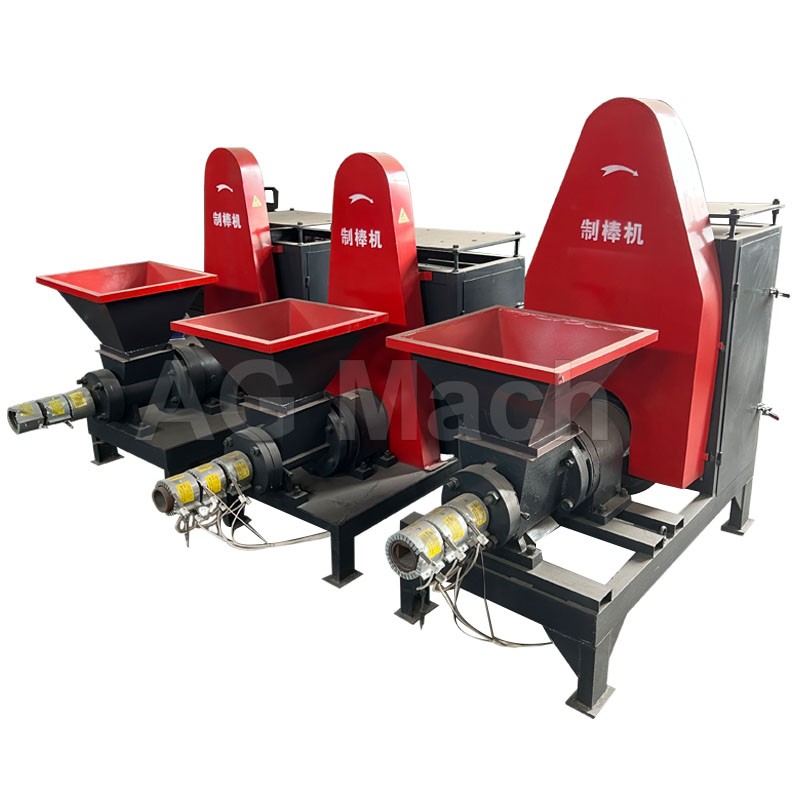

                ZBJ-50A                                   ZBJ-50B                                   ZBJ-50C


Process flow chart:


(1)  Crush raw material into small pieces(diameter is about 3-5mm).
(2)  Dry the material by dryer or dried it in the sun,till the moisture is less than 12%.
(3)  Put the material into feed let of briquette machine.
(4)  Produce the briquette stick from biomass material without any additive.

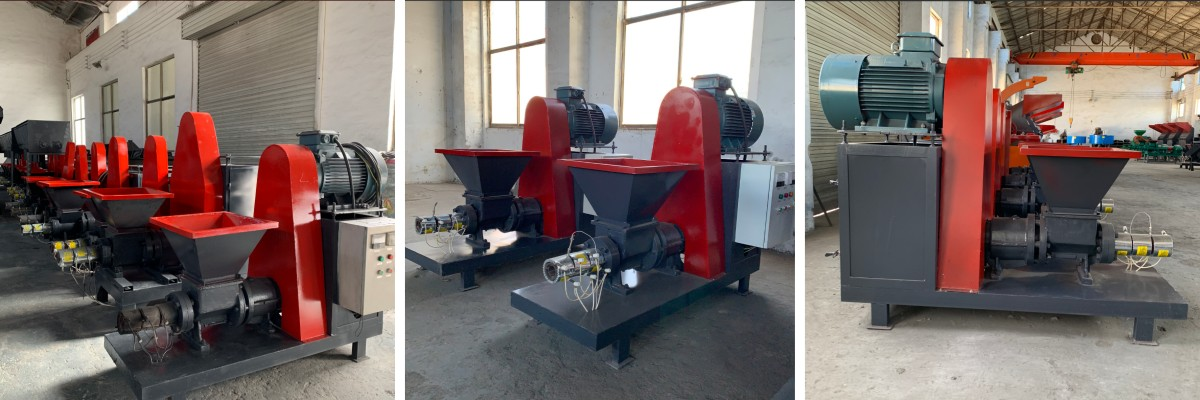

Agricultural waste wood sawdust briquette making machine

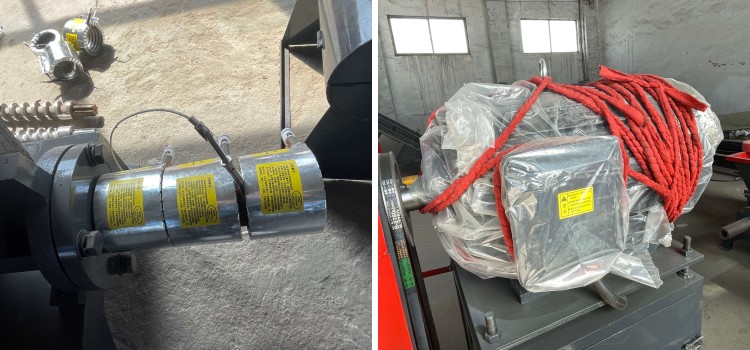

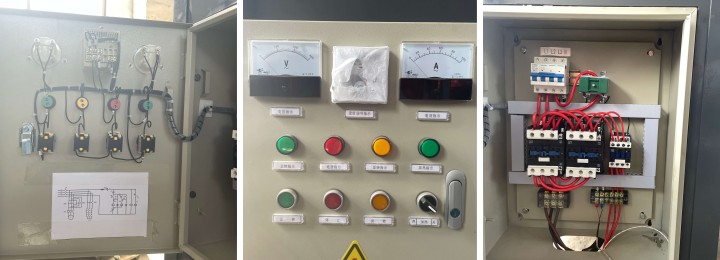

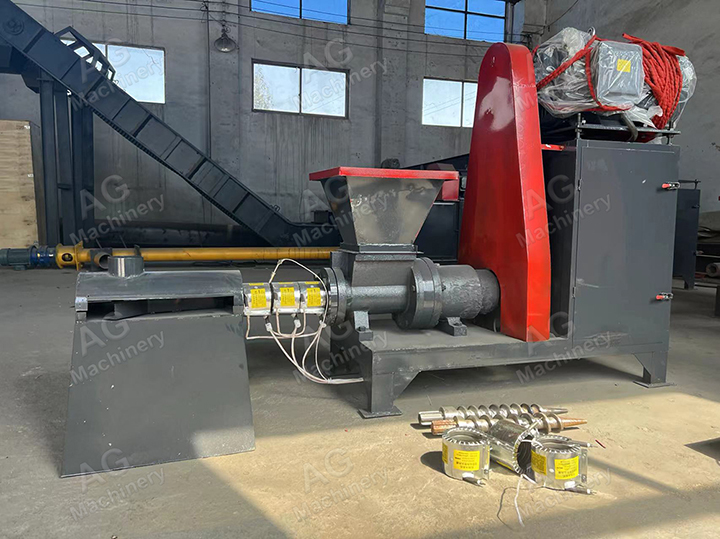

Machines details:




Raw material & Final products:

Raw Material:


  • Biomass wastes, such as sawdust,rice husks,coffee husks,rice straw, wheat straw,etc.

  • Material required: Moisture 8%-12%, size3-5mm

  • If moisture>12%,may need dryer.We have air flow dryer and drum dryer.

  • If material size >5mm,we suggest to equip with hammer mill or wood crusher.

  • When begin to work,the heating circle heat the machine,then wood briqutte machine can press sawdust without
    any binder, sawdust pressed by high temperature and high pressure , then the screw press sawdust forward,

    extrusion into a rod-shaped solid rod with center hole.

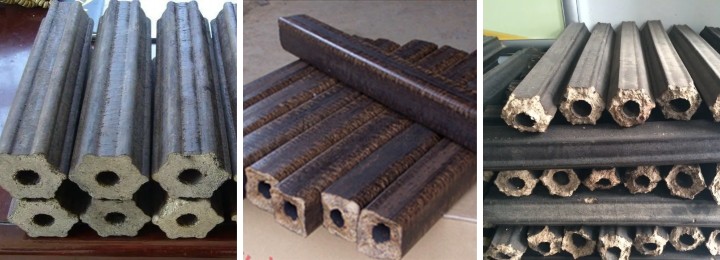

Final Products:


The feature of the Final Product

Specific gravity: 1300—1900kg/m

Calorific value:  4500—5000kcal/kg


Application for Charcoal Briquette

As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used

as a substitute of any fuel in following fields:

1)  Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries,

Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other  industries..

2)  Furnace & Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

3)  Brick Kilns: It is the total, substitute of
