High Efficiency Small Poultry Feed Pellet Processing Line


High Efficiency Small Poultry Feed Pellet Processing Line

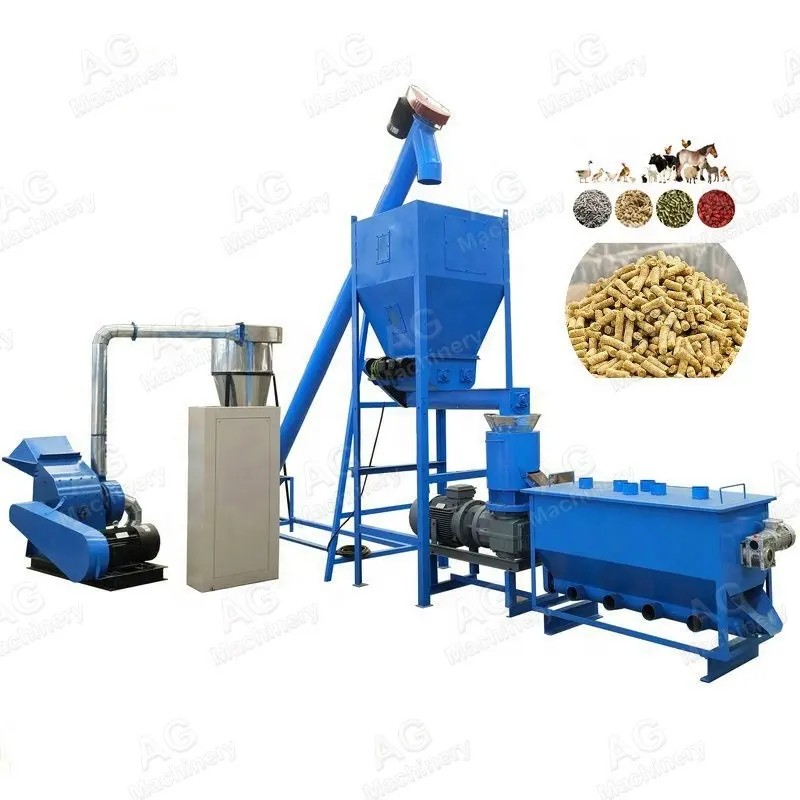

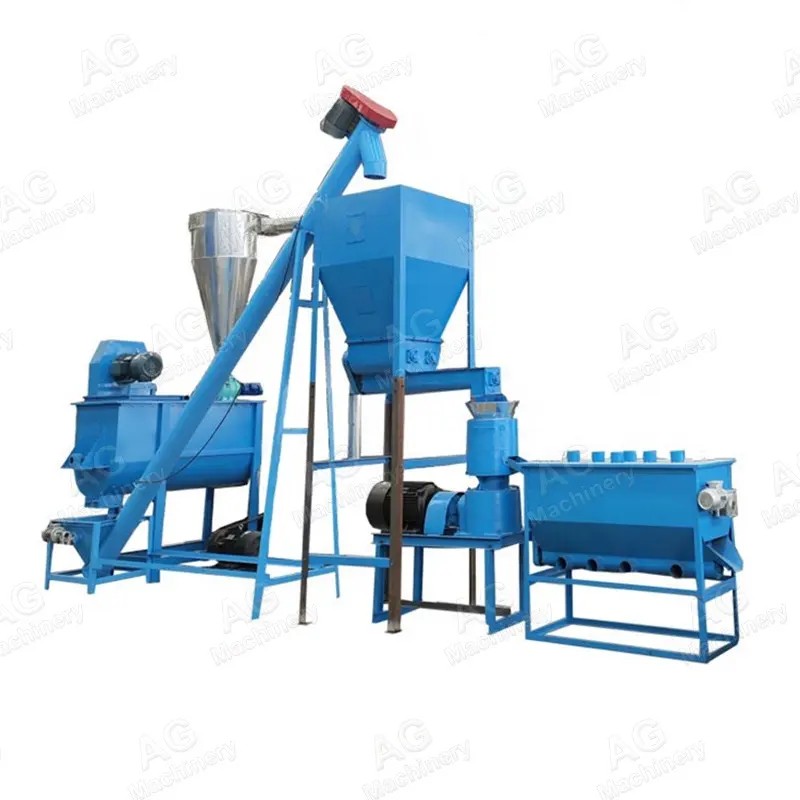

500kg feed line 02.jpg

Product Description:


The animal/poultry/livestock feed pellet production line is not only used for feed and animal husbandry industry, but also used for fertilizer and biomass energy.

It can be used for pig, cow, horse, sheep, livestock etc, and chicken, duck, goose, fish, rabbit, dove small plant breeding feed factory, and animal manure, sludge, biogas residue as organic fertilizer, inorganic fertilizer, compound fertilizer and other fertilizer granules.

Hammer Crusher - Feed Mixer - Screw Conveyor - Feed Pellet Mill - Pellet Cooler - Packing Machine

A). For pig, the pellet diameter is usually ø3.5-6.5mm.
B). For cattle, the pellet diameter is usually ø4.5-8mm.
C). For chicken, pellet diameter is usually ø3.2mm.
D). For fish, pellet diameter is usually ø2.0, ø2.5, ø3.0mm.
E). For shrimps, pellet diameter is usually ø1.0-ø3.5mm.


                                                               Technical Parameters of Animal feed production line
Product NameModelPowerCapacityQ'ty
Hammer Crusher9FQ500-4022KW800-1000kg/h1 set
Feed MixerWS-10005.5KW*2800-1000kg/h1 set
Screw ConveyorLS-160-54KW/
1 set
Feed Pellet MillPM-400B30KW800-1000kg/h1 set
Pellet CoolerLQJ-705.15KW800-1000kg/h1 set
Bucket ElevatorQB-3802.2KW/1 set
Packing MachineDCS-50A2.24KW800-1000kg/h1 set
Electric CabinetBK-1380V/50Hz/1 set

Please note: We can also adjust the process according to your need.

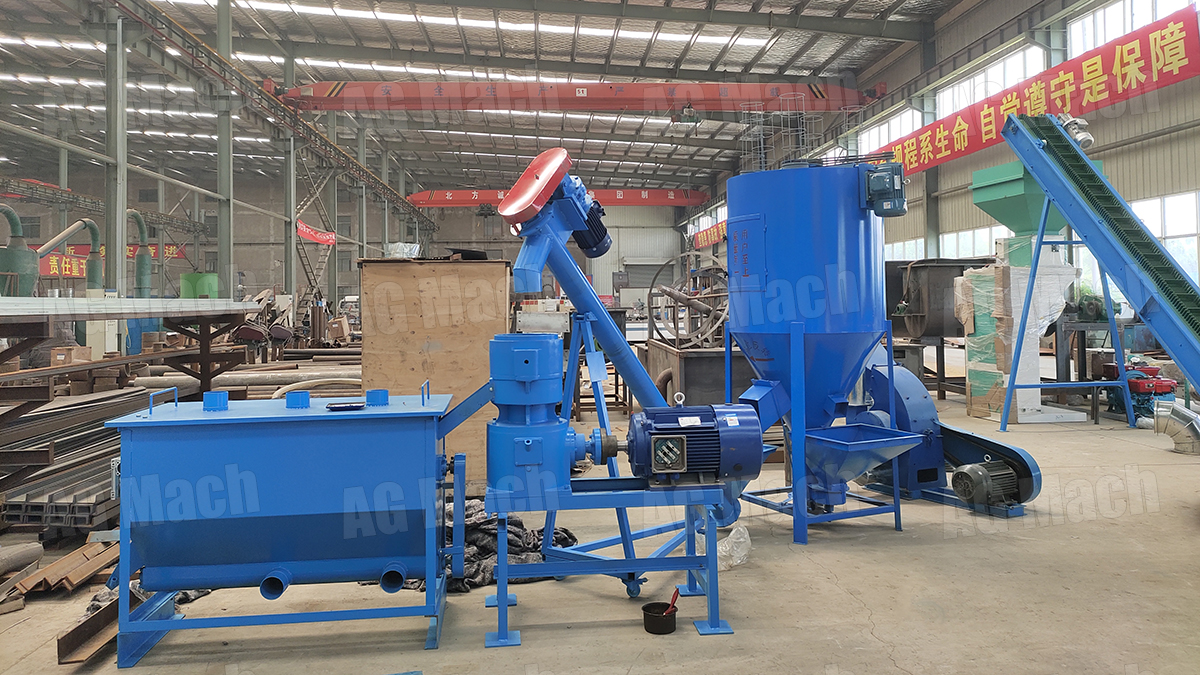

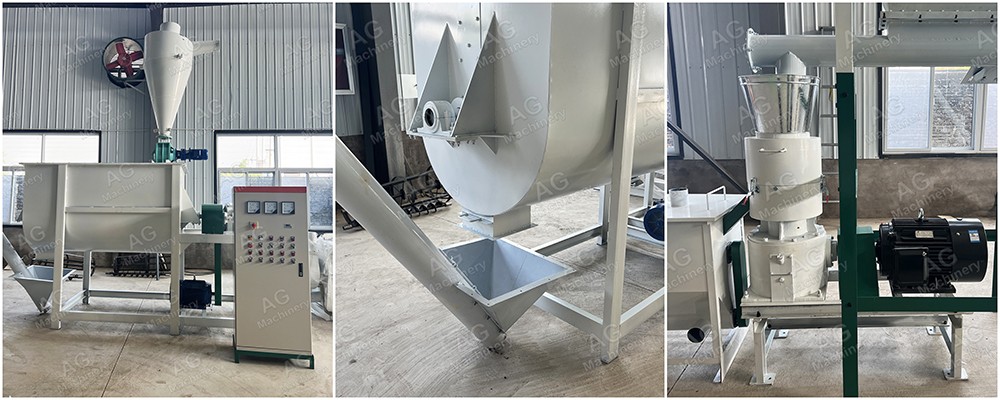

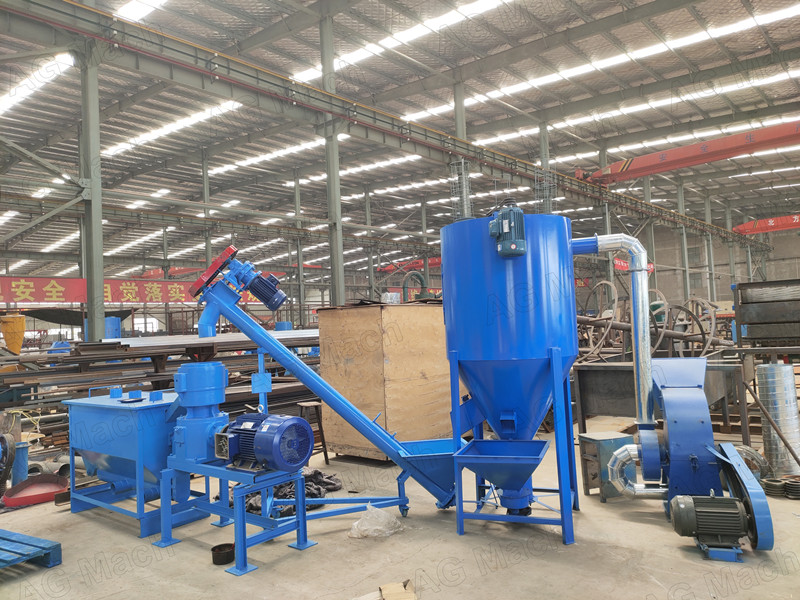

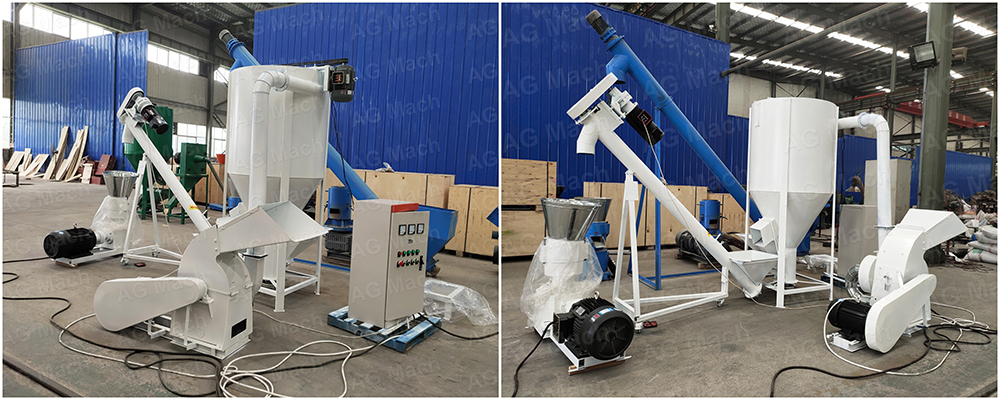

Details Images:

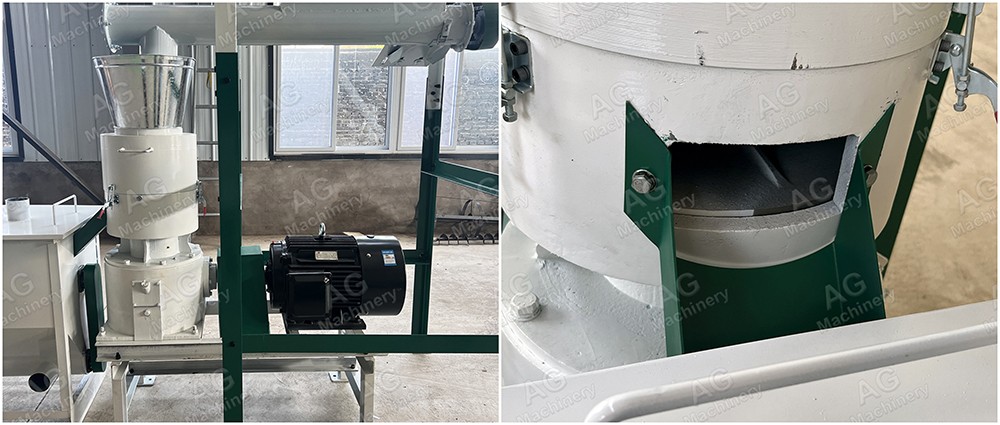

Feed Line 4.jpg


* Simple structure, wide applicability, small floor space, low noise.

* Powder feed, do not add water or little water granulation can be carried out. The moisture content of pellets smaller, more conducive to storage.
* Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic
microorganisms and parasites can be killed, be suitable for feeding rabbit, fish, duck and experimental animals.

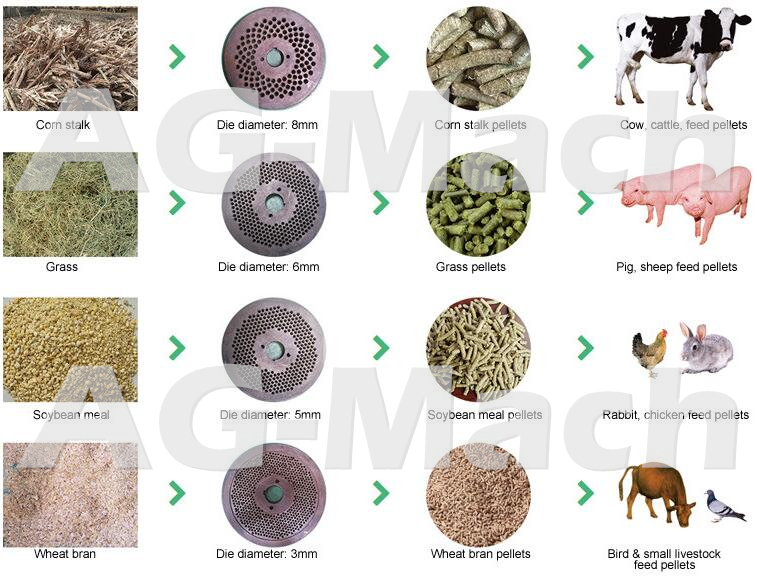

* The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results.
* Be suitable for various materials, suppression effect can be guaranteed.


Pacakage & Delivery:
