Factory Supply Maize Snack Food Extruder Soybean Extruding Machine

EMAIL

Factory Supply Maize Snack Food Extruder Soybean Extruding Machine

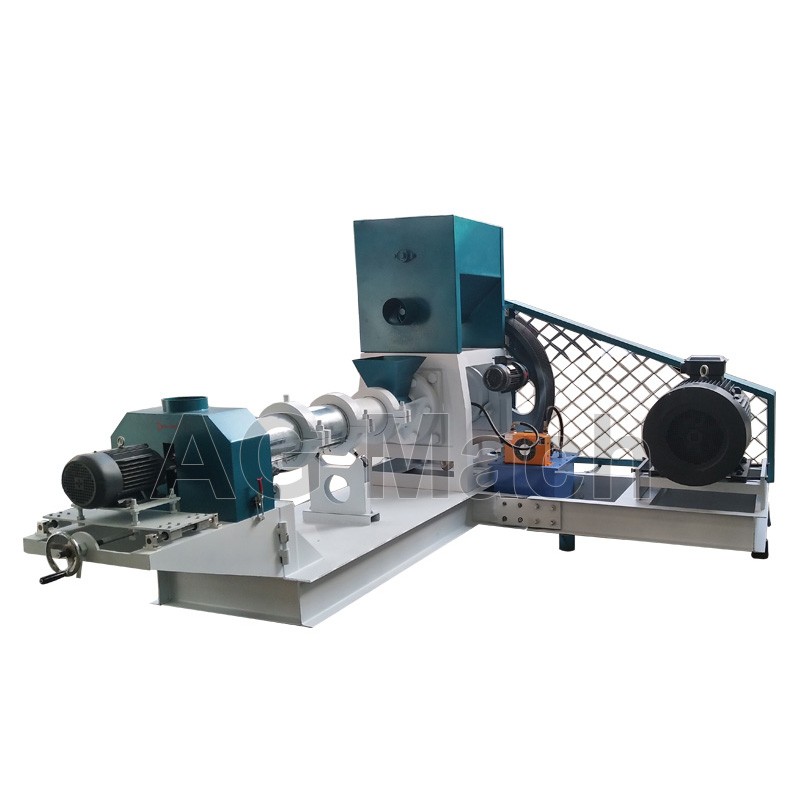

corn extruder.jpg

Product Introduction:

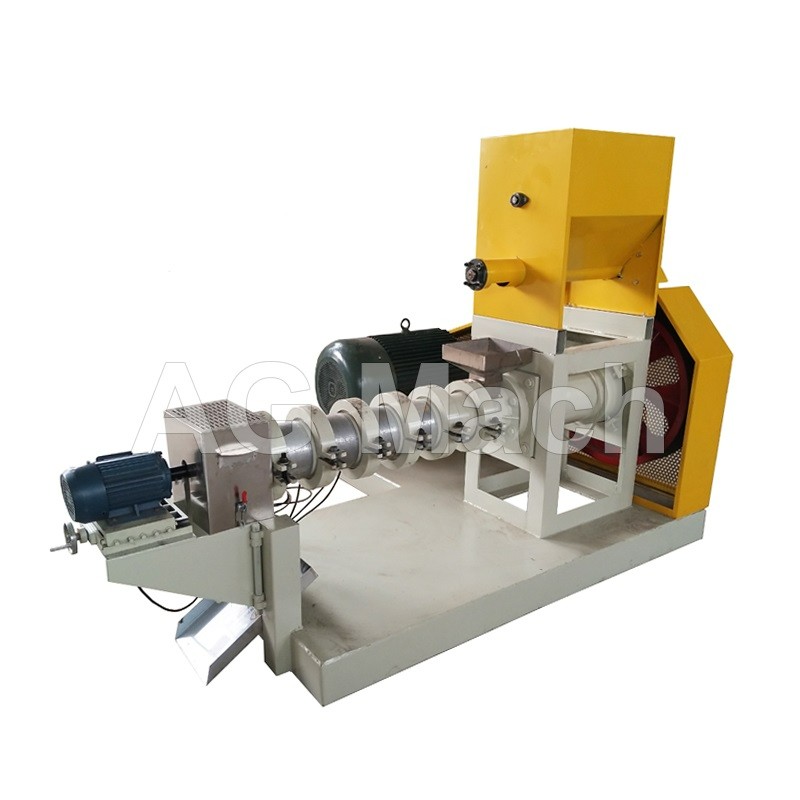

The DGP series of large and medium-sized dry feed extruder is carefully designed by adopting the advantages of domestic and foreign models and integrating a number of technological innovations. This machine adopts a combined main shaft, which can be adapted to the puffing processing of different materials and processing whole corn and soybeans.


The supporting facilities are simple and the operation and maintenance are convenient. The main motor can be Siemens to ensure product quality. The processing conditions of the dry extruder and the wet extruder are easily interchangeable, and the screw sleeve adopts an inlaid alloy steel bar structure, which has a longer service life.


It is widely used in extruded soybean, corn, suckling pig feed and other livestock and poultry feed, rice bran preservation, cotton meal, castor meal detoxification treatment, it is an ideal tool for feed processing enterprises.

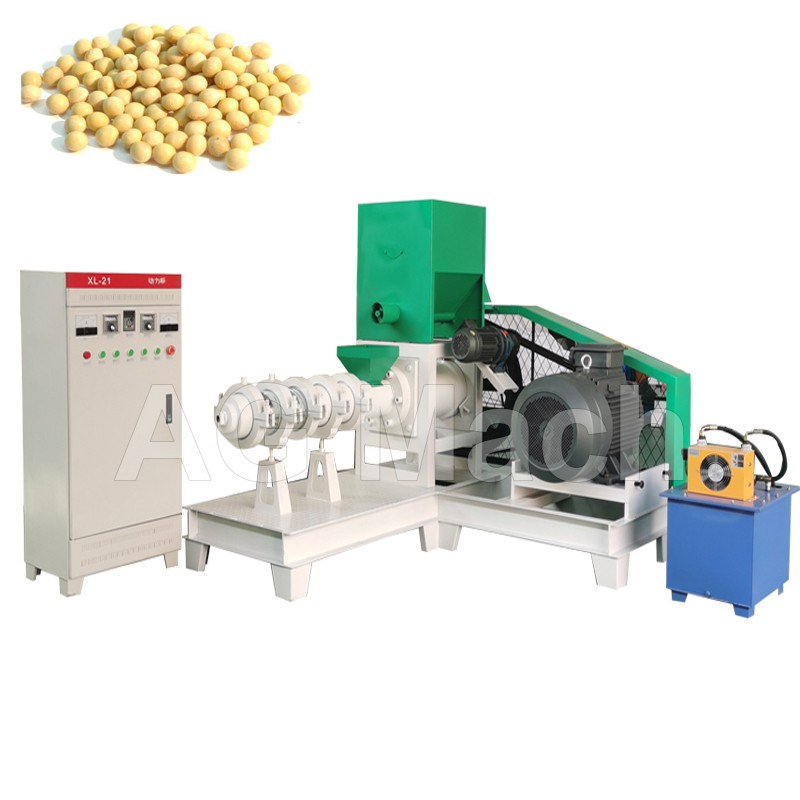

feed puffing machine.jpg

Specification:

Model

Capacity for Soybean

Capacity for Corn/Maize

Main Power

Feeding Power

Screw Diameter

DGP-70B

200kg/h

180-200kg/h

18.5kw

0.4kw

Φ70mm

DGP-80B

200-300kg/h

200-250kg/h

22kw

0.4kw

Φ80mm

DGP-90B

350-400kg/h

300-400kg/h

37kw

0.6kw

Φ90mm

DGP-120B

500-600kg/h

500-550kg/h

55kw

0.6kw

Φ120mm

DGP-135B

800-900kg/h

700-800kg/h

75kw

0.8kw

Φ135mm

DGP-160B

1000-1200kg/h

900-1000kg/h

90kw

1.5kw

Φ160mm

DGP-200B

2000kg/h

1800-2000kg/h

132kw

1.5kw

Φ200mm

soybean puffing_副本.jpg

Advantage:

(1). The Full fat soybean extruder machine uses modular spindle, can be adapted to different materials Extruding processing, whole grain corn and soybean processing facilities is simple, easy operation and maintenance.
(2). novel design, high output, stable operation, the main components is heat treated special alloy material refined, with a high degree of wear resistance, long life and other characteristics.
(3). Extruding (whole corn) raw materials, and easy operation and maintenance, suitable for small feed mill and the majority of farmers' special use.
(4). The screw and sleeves using an inlaid alloy strip structure, longer life.
(5). The Full fat soybean extruder machine Widely used in expansion of soybean, corn, suckling pig feed materials and other livestock and poultry feed, rice bran preservation, cottonseed meal, castor meal detoxification, it is the ideal choice tool for feed processing enterprises.

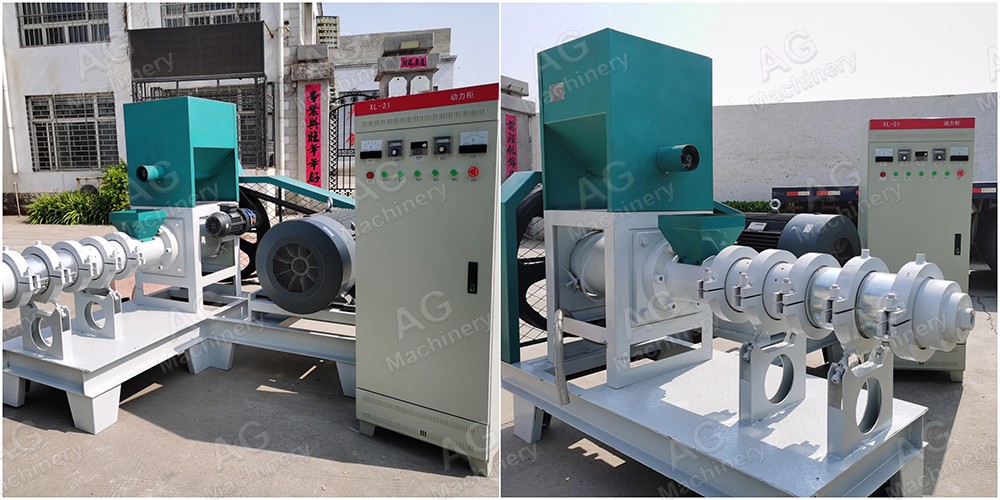

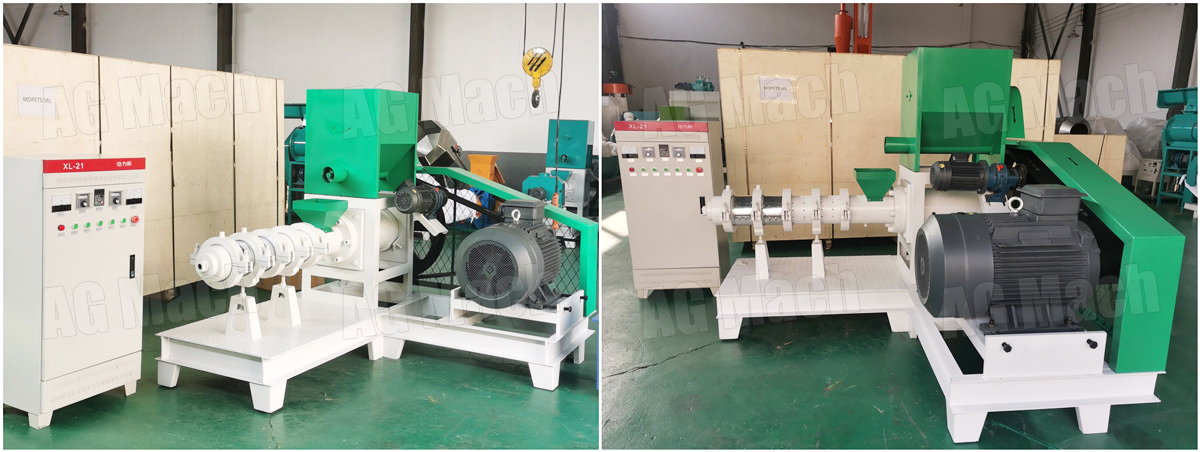

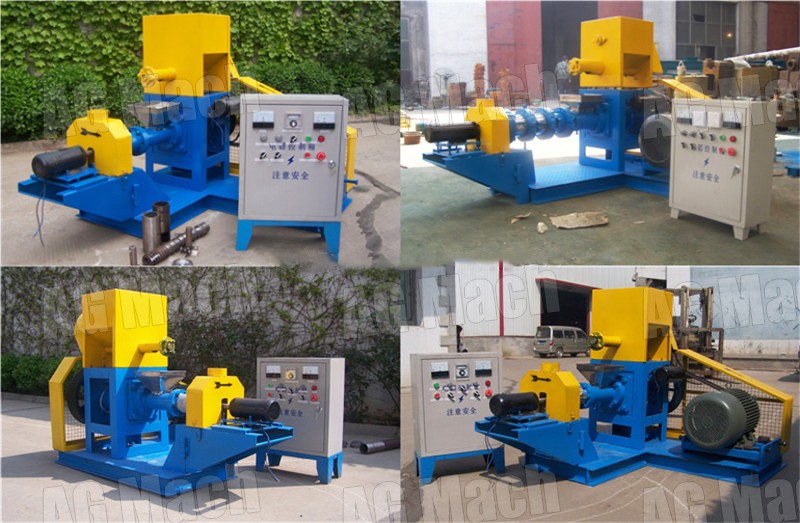

Detailed Imags:



Working Principle:1698307796925342.jpg

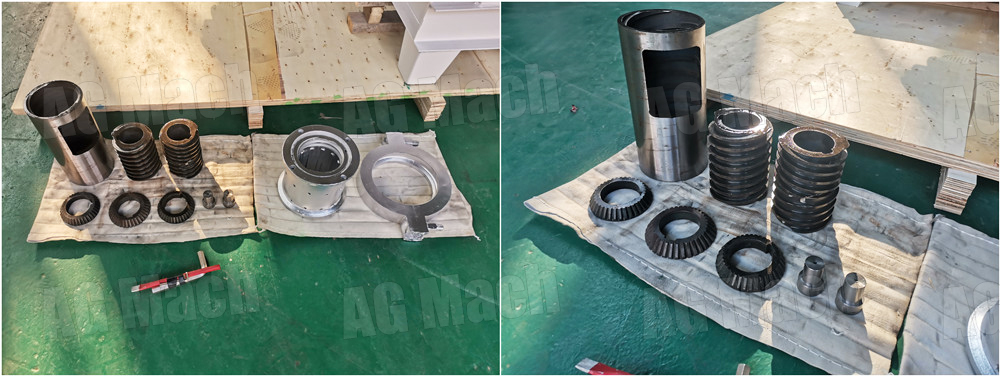

* The screw sleeve and screw are made of a special high-temperature resistant alloy just now. They are formed by heat treatment.They are equipped with a unique pressurized die device to ensure the output and quality of the feed; and are equipped with an electric heating device to increase the boronization rate of the feed.

* The main motor adopts high-quality Y series three-phase motor to ensure strong power.

* The speed-adjustable feeding device is more convenient to operate, feeds evenly, and prevents material jams.

* The discharging template is easy to replace. If you need feed with different diameters, you only need to change the hole template. Ensure that the feed is clean and hygienic, which is conducive to protein denaturation and starch gelatinization, and is easy to absorb. Generally, the use of extruded floating fish feed saves 8%-15% of feed than powder or pellet feed.


Raw material: Soybean, corn, wheat, rice.
