Description of Wood crushing machine:


Wood crushing machine biomass wood crusher, it can crush wood logs, wood block and wood waste into sawdust and granular with different fineness. Wood crushing machine is suitable for milling raw material like (tree branch, tree trimmings, cotton stalk, corn stalk, wheat straw etc) with size less than 50mm (diameter). After milled, the output size can reach to 3-5mm after milled, which is suitable for making wood pellets.


Features of Biomass Wood Crusher:

  • Wood crusher can process material like wood log, bamboo, twigs, straw, stalk and wood chip, tree branch,forest waste and other biomass materials into sawdust.
  • Final size of crushed material is less than 3-5mm, which is right size for pelletizing and briquette.
  • Small investment, energy saving, high productivity, good economic benefits, convenient maintenance.

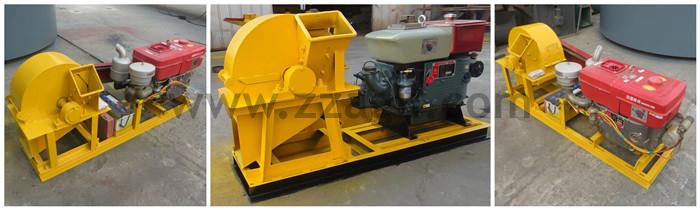

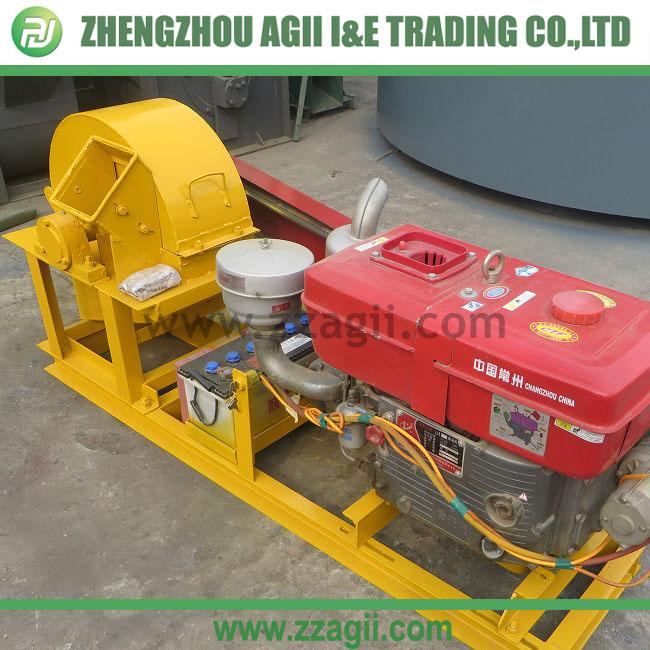

  • Our wood crusher can be driven by the electric motor, diesel engine, and tractor.


Technical Data:

Model

Power

Output

Blade Qty

Dimension

Weight

9FH-400

7.5KW

300-500kg/h

4pcs

1200*550*750 mm

300Kg

9FH-600

15KW

600-800kg/h

4pcs

1400*650*1100 mm

520Kg

9FH-800

30KW

1000-1500kg/h

4pcs

1900*1000*1450 mm

950Kg

9FH-1000

45KW

1800-2000kg/h

6pcs

2100*1200*1550 mm

1300Kg

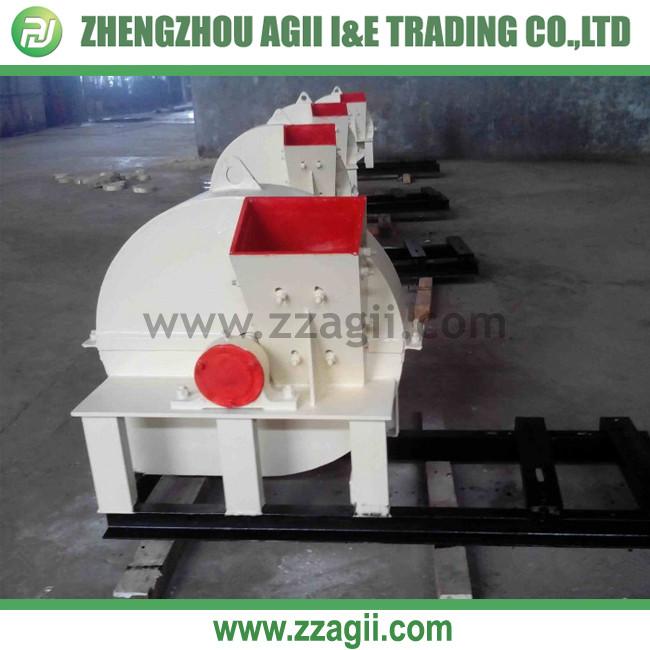

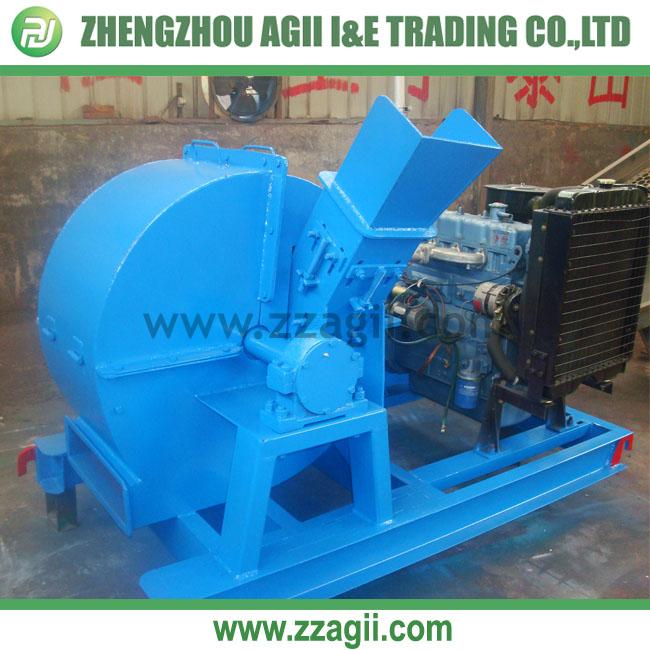

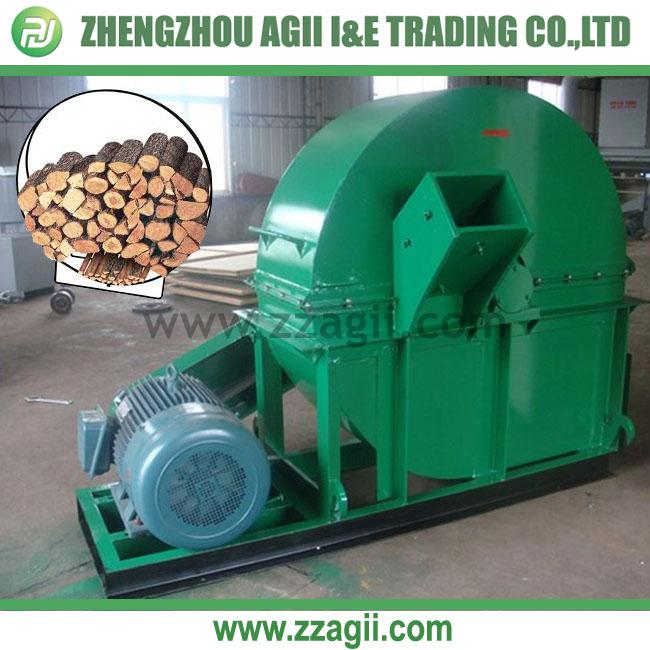

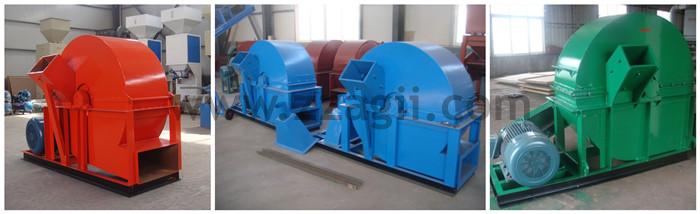

Pictures of Crusher Machine:

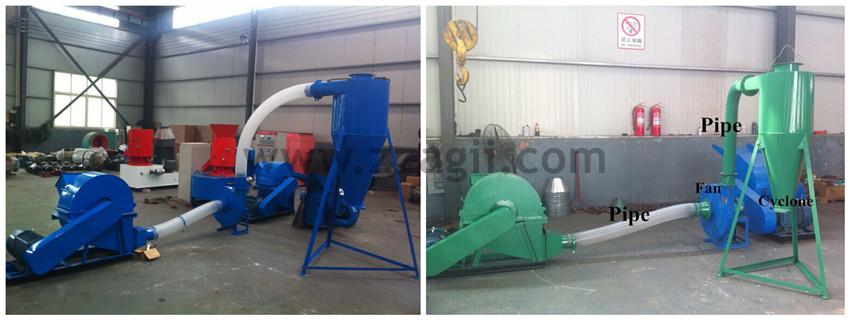

Wood Crusher with Cyclone Separator

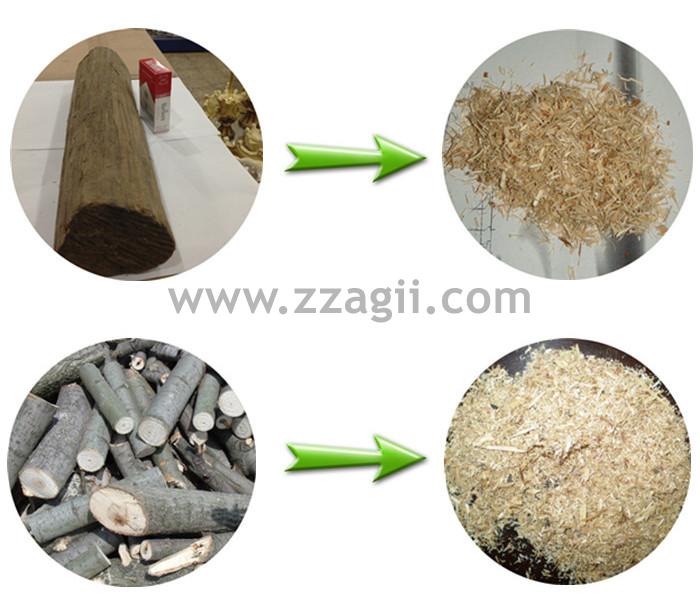

Wood Crushing Process
