Home > Band Sawmill

  • China Portable Large Wood Log Sawmill machine
  • China Portable Large Wood Log Sawmill machine
  • China Portable Large Wood Log Sawmill machine
  • China Portable Large Wood Log Sawmill machine
China Portable Large Wood Log Sawmill machineChina Portable Large Wood Log Sawmill machineChina Portable Large Wood Log Sawmill machineChina Portable Large Wood Log Sawmill machine

China Portable Large Wood Log Sawmill machine

  • Model: MJ-1000
  • Power: 11kw
  • Max. wood diameter: 1000mm
  • Max. wood length: 4500mm
  • Product description:Cheap Price China Portable Large Wood Log Sawmill machine for Africa
  • INQUIRY

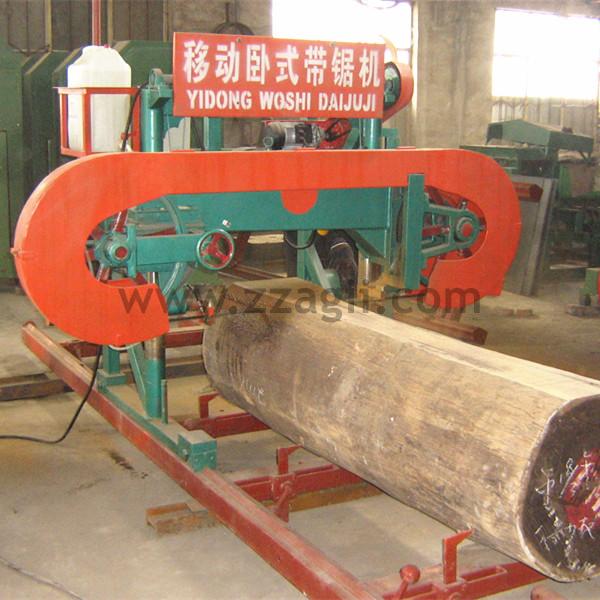

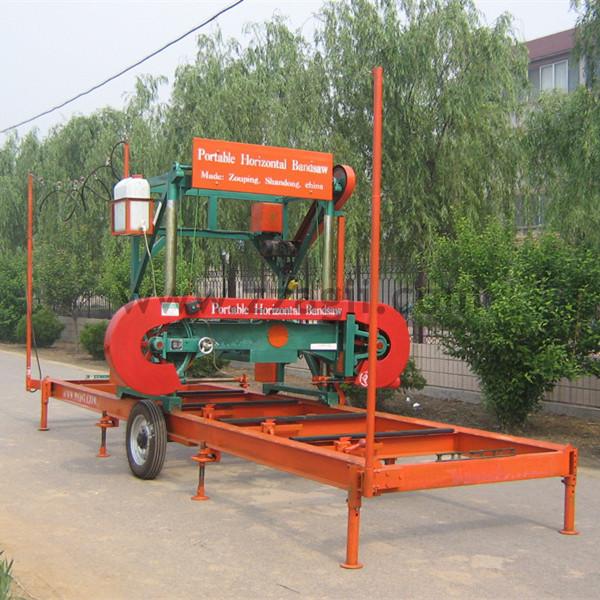

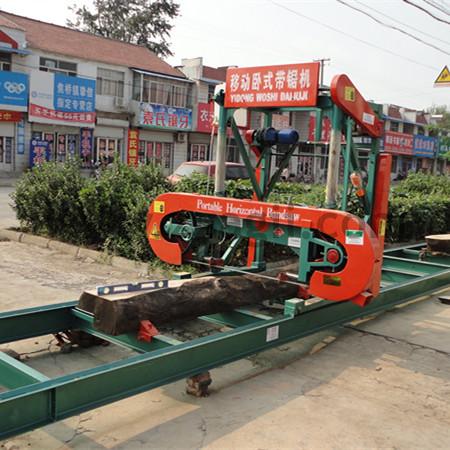

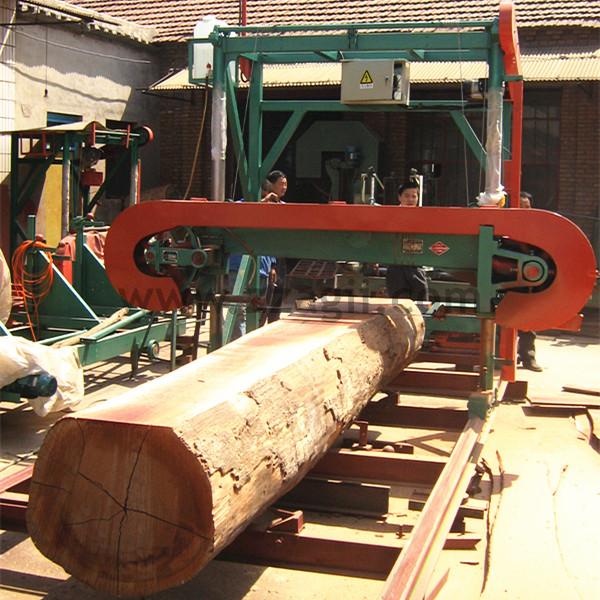

Horizontal Band Sawmill with Electric Motor or Diesel Engine

band saw mill for wood cutting

  • Portable Horizontal Band sawmill are hot selling in Africa and South America.
  • It is simple installation, easy operation, labor saving and high productivity.
  • This machine can be drove by either electric motor or diesel engine.
  • It is widely used by the timber process enterprises in the virgin forests area.

Technical Data:

Model

MJ-700

MJ-1000

MJ-1300

MJ-1700

Max. Wood Diameter

700mm

1000mm

1300mm

1700mm

Saw wheel diameter

600mm

700mm

700mm

700mm

Max. sawing thickness

260mm

300mm

300mm

300mm

Blade speed

20-25m/s

20-25m/s

20-25m/s

20-25m/s

Max. Length of wood

4500mm

4500mm

4500mm

4500mm

Power of electric motor

7.5KW

11KW

15KW

18.5KW

Lifting motor power

1.1KW

1.1KW

1.1KW

1.1KW

Tensioner blade mode

Manual

Hydraulic

Hydraulic

Hydraulic

Rail length

5900mm

5900mm

5900mm

5900mm

Total weight

900KG

1100KG

1300KG

1400KG
