Home > Pipe Dryer

  • Customized Professional Good price of hot air dryer machine and industrial dryer machine
  • Customized Professional Good price of hot air dryer machine and industrial dryer machine
  • Customized Professional Good price of hot air dryer machine and industrial dryer machine
Customized Professional Good price of hot air dryer machine and industrial dryer machineCustomized Professional Good price of hot air dryer machine and industrial dryer machineCustomized Professional Good price of hot air dryer machine and industrial dryer machine

Customized Professional Good price of hot air dryer machine and industrial dryer machine

  • hot air dryer machine
  • industrial dryer machine
  • Energy Saving Industrial Drying Equipment
  • Food industrial machines
  • Product description:Customized Professional Good price of hot air dryer machine and industrial dryer machine
  • INQUIRY

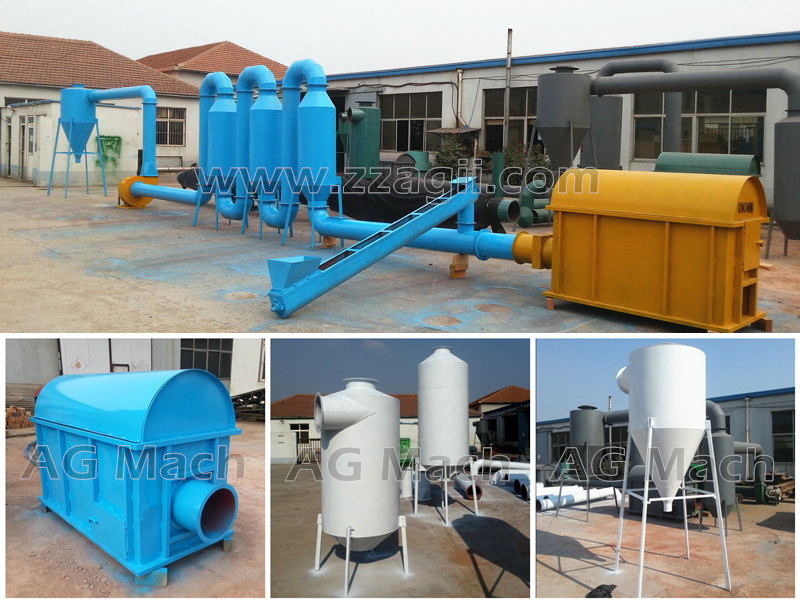

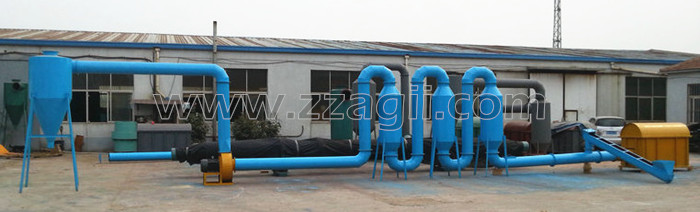

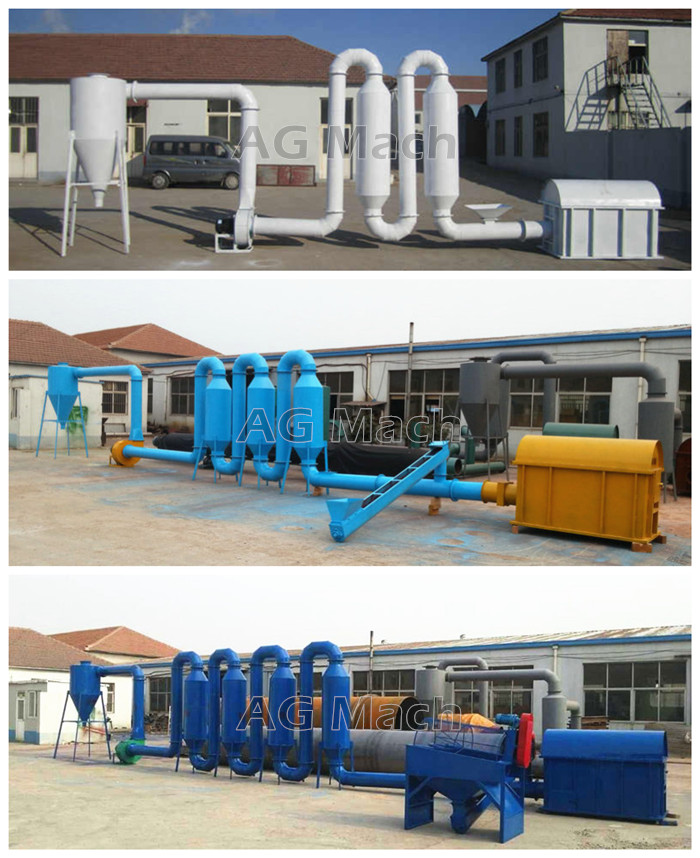

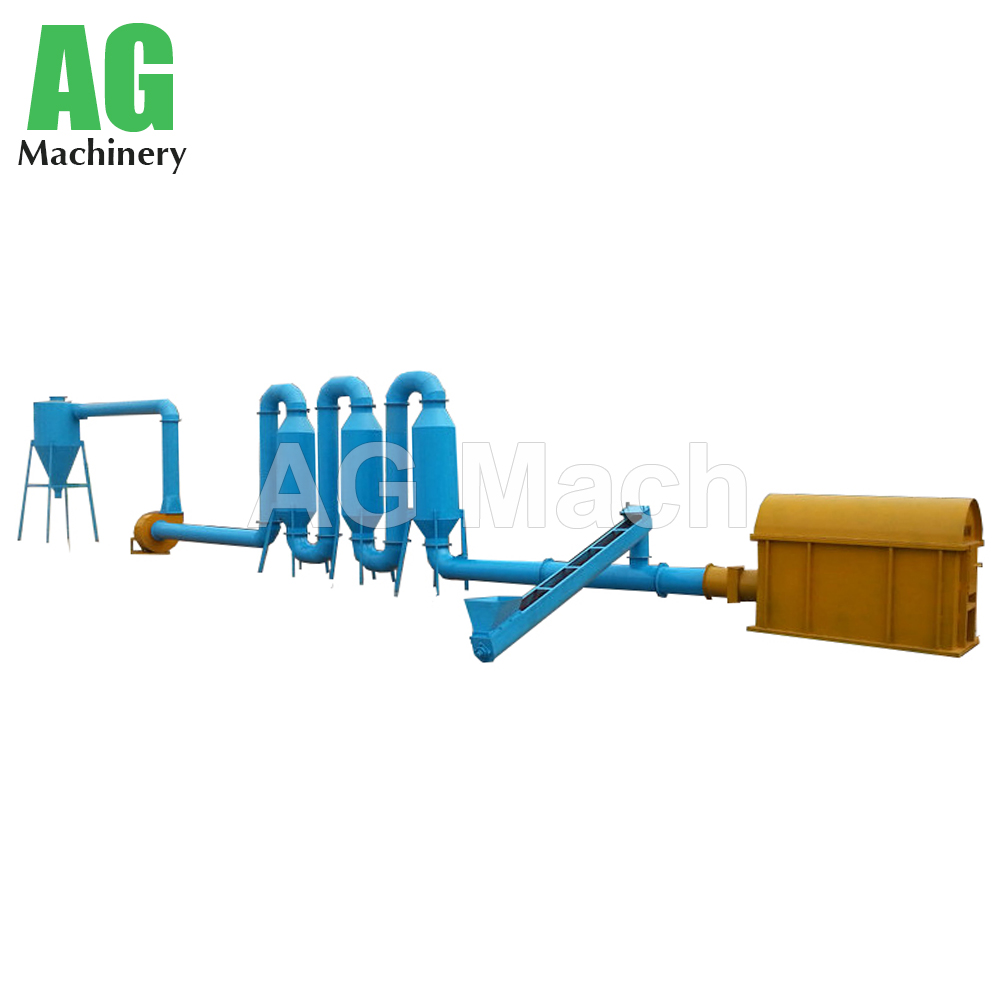

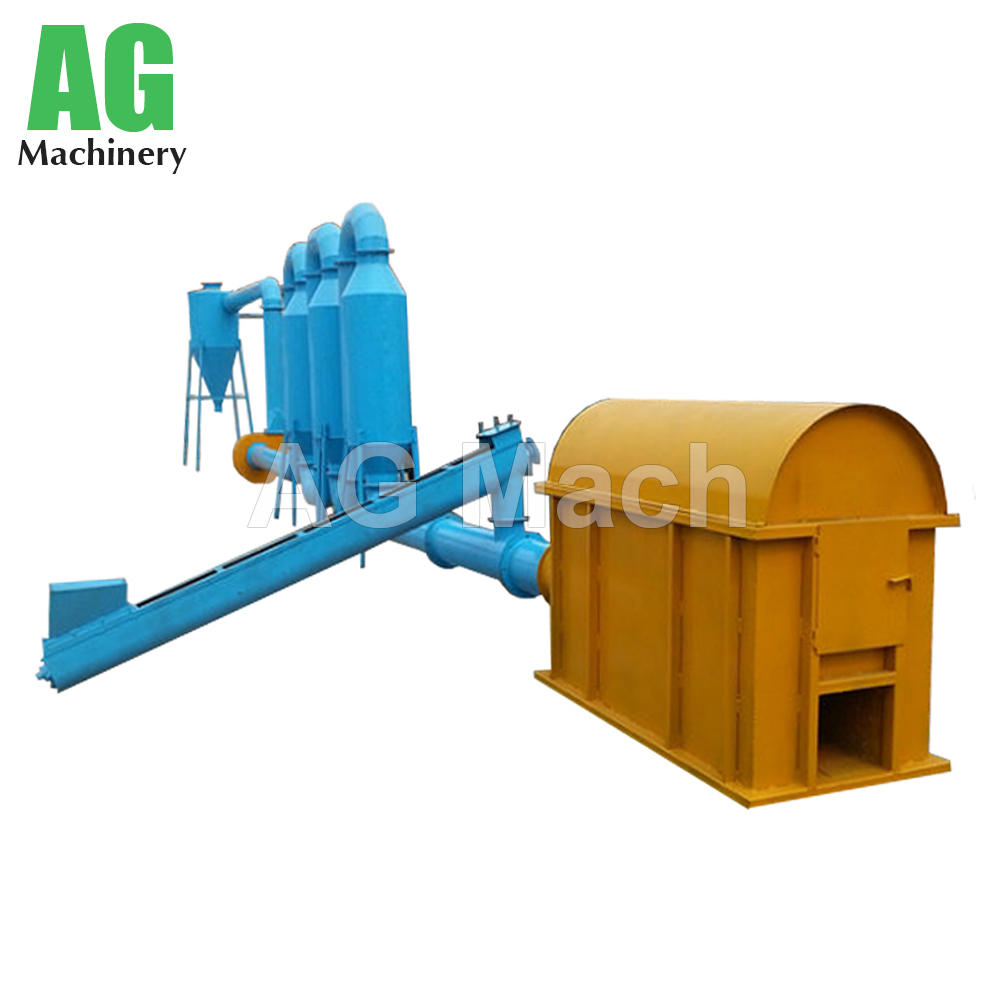

Introduction of biomass sawdust dryer:


1)  The pipeline sawdust dryer machine is suitable for drying raw material with moisture content less than 20-25%.

If the moisture content of raw material is higher than that, it will need several times of drying to achieve the requested

moisture for further briquetting or pelletizing process.

2)  It is suitable for drying sensitive material like sawdust, rice hull, milled wheat straw, milled cotton / corn stalks and so on.

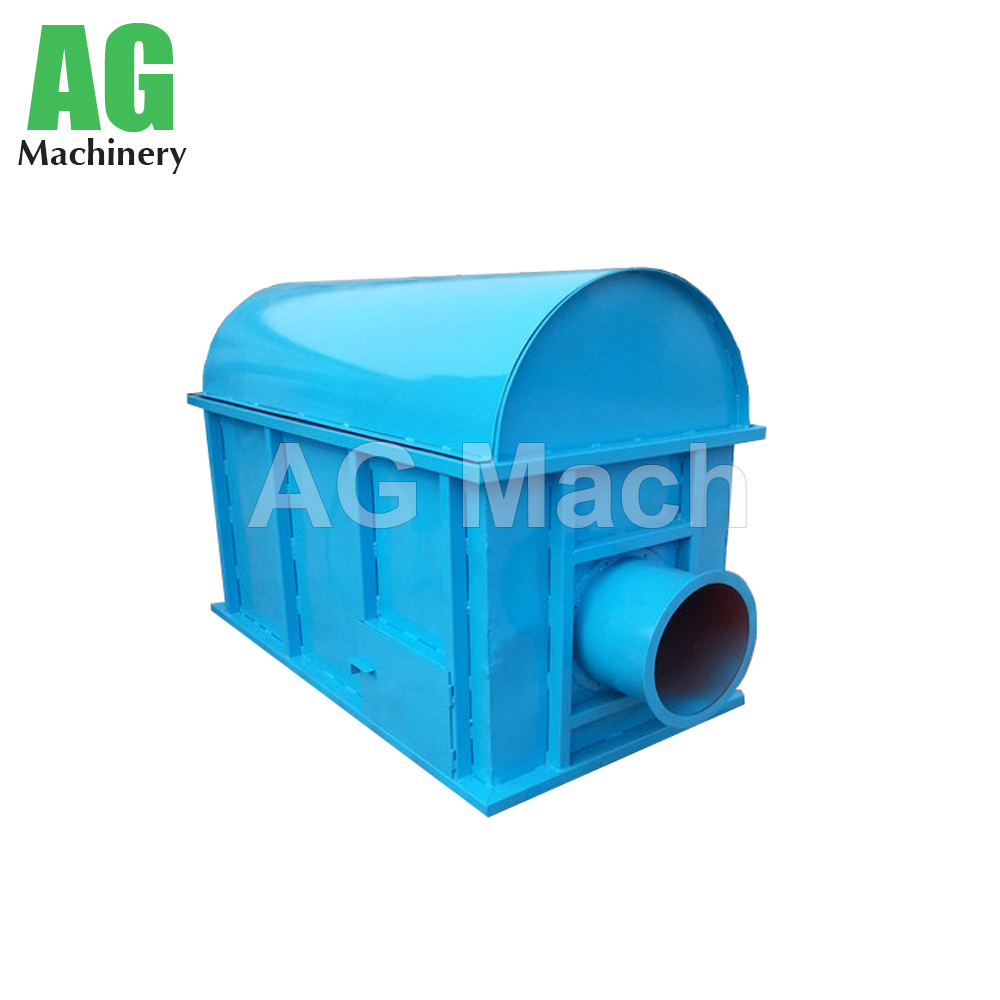

3)  It is made up of heat stove, tube, impulse jar, function tube, fan, and cyclone separator.

4)  It can reduce moisture from 40-45% to 8-12%.

5)  Fuel for the furnace: wood waste, coal. Waste oil and so on.


detail


Technical Data:

Model

HGJ-260A

HGJ -300A

HGJ -350A

HGJ - 400A

Initial Moisture

25%-30%

25%-30%

20%-30%

20%-30%

Final Moisture

10%-15%

10%-15%

10%-15%

10%-15%

Main Power

4 kw

7.5 kw

11 kw

15 kw

Drying Speed

200-250 kg/h

300-400 kg/h

600-800 kg/h

800-1000kg/h

Pipe Diameter

260mm

300mm

350mm

400mm

Cyclone Diameter

780mm

900mm

1050mm

1200mm

Fuel Consumption

40-50kg/h

60-80kg/h

80-100kg/h

100-150kg/h

Dimension

9*2.5*3.1 m

16*2.5*3.2 m

18*3*3.3 m

20*3*3.5 m


Function of wood sawdust dryer:


1.Can guarantee the standard rate of the finished products





2. Can solve the problem for the uneven final particle size.


3.Adopts high technology Reliability Precision.


4.unique design.and advanced heating mode by firewood.oil and electricity.
