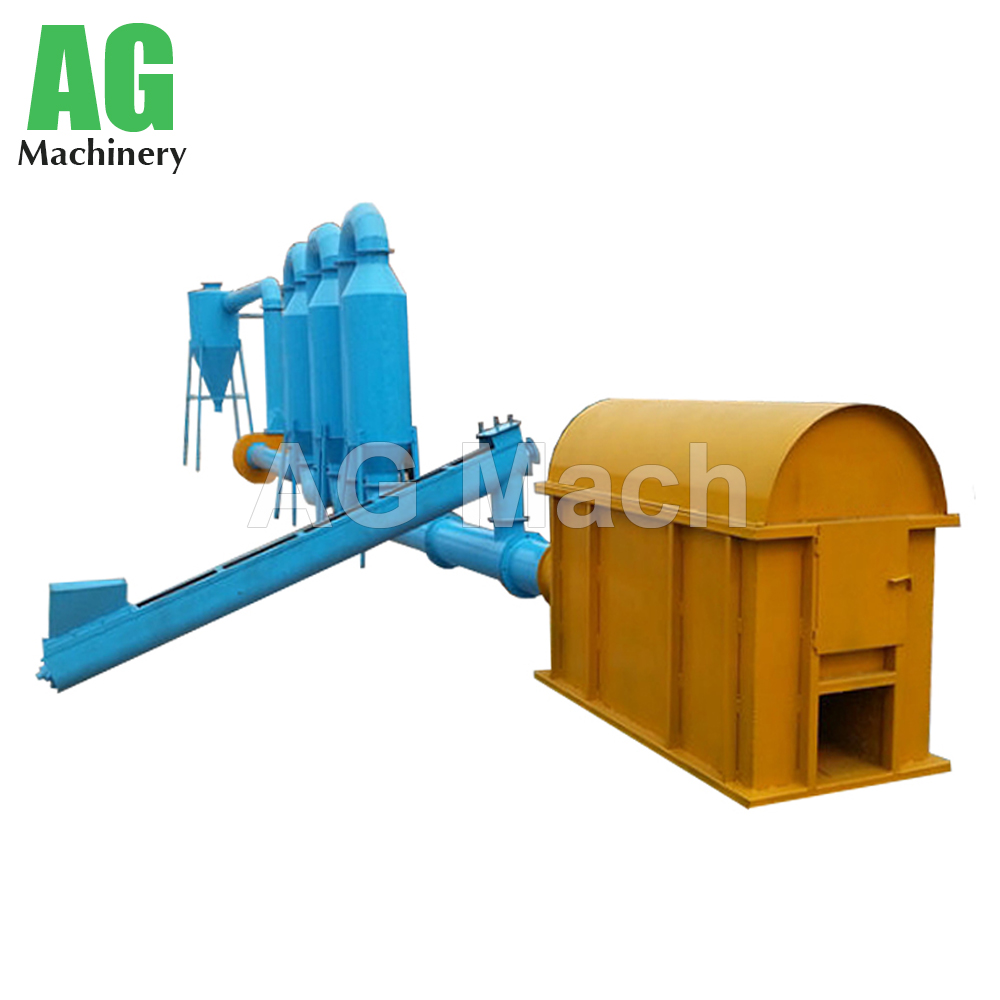

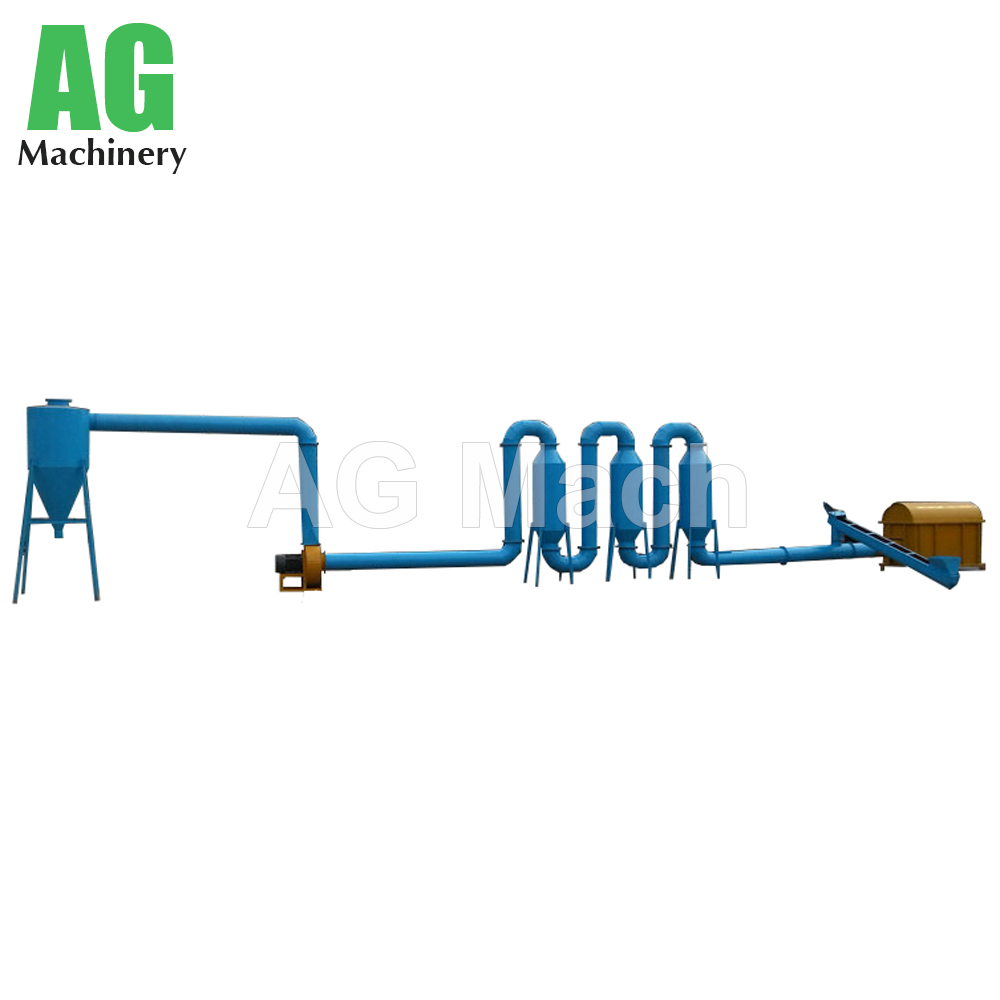

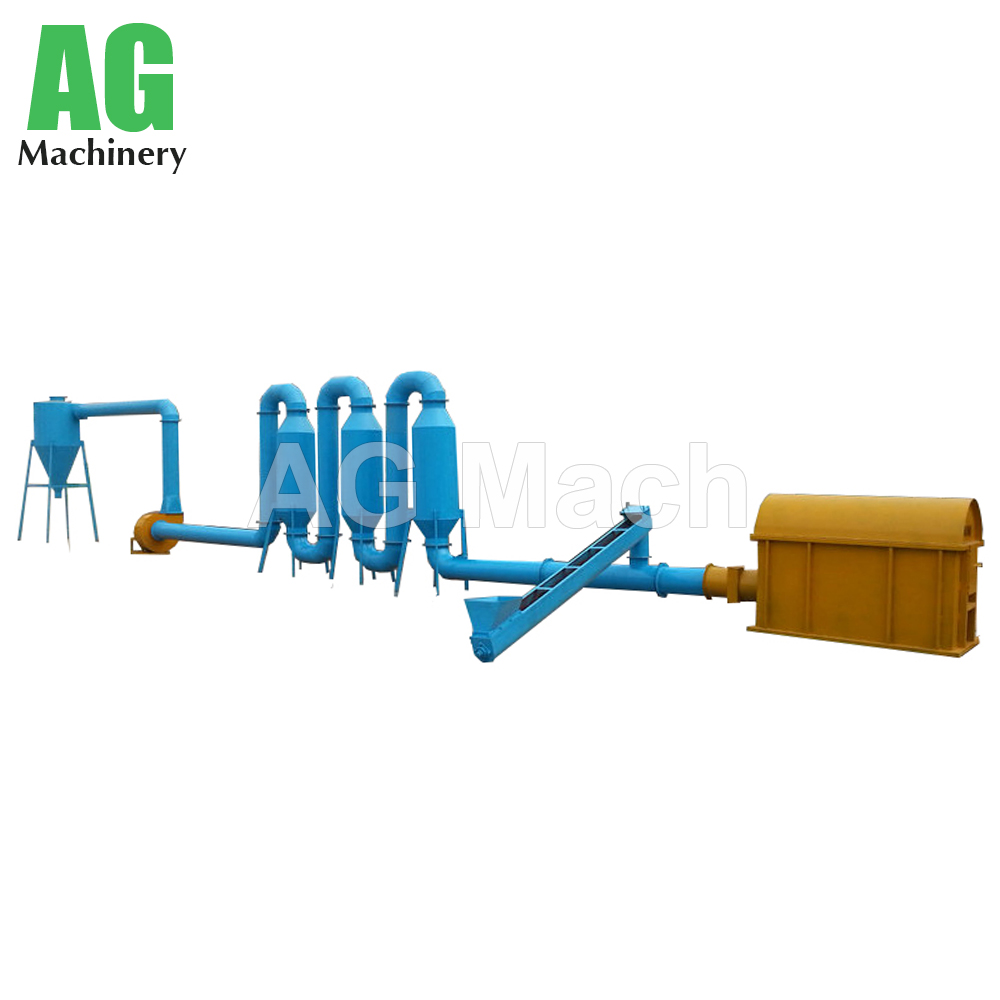

Factory Price Best Selling pipe line cyclone dryer and sawdust flash type dryer and air pipe dryer

Product Description

4. Unique design.and advanced heating mode by firewood.oil and electricity.

Technical Data

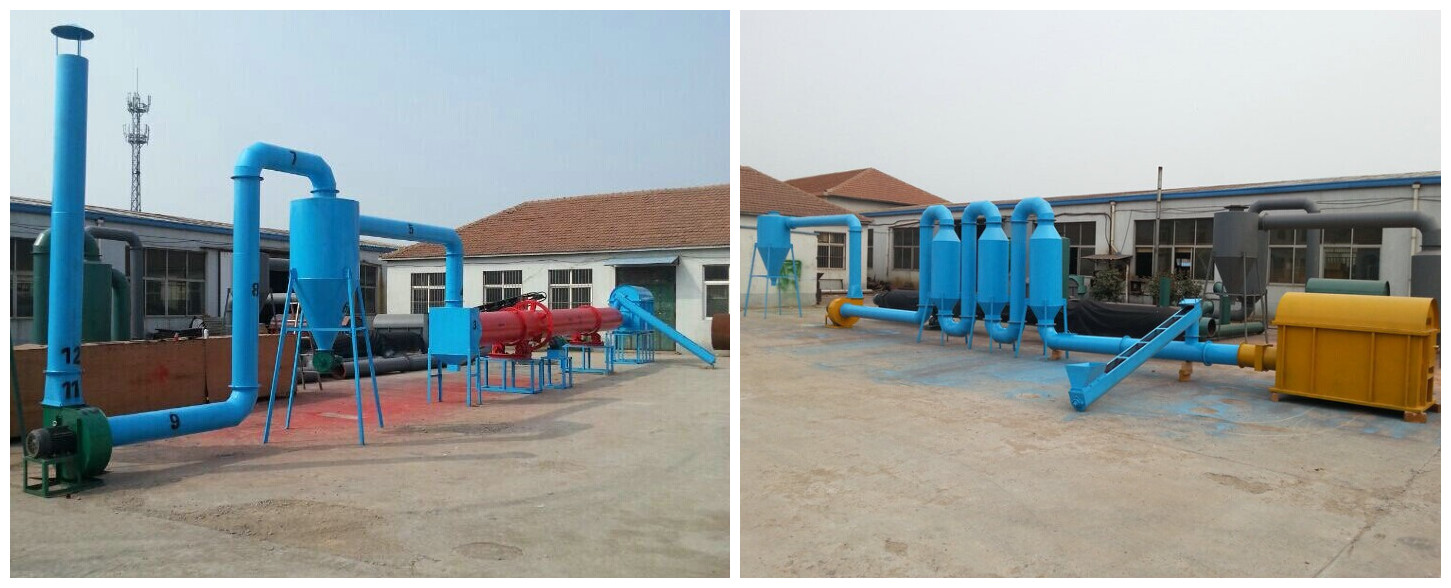

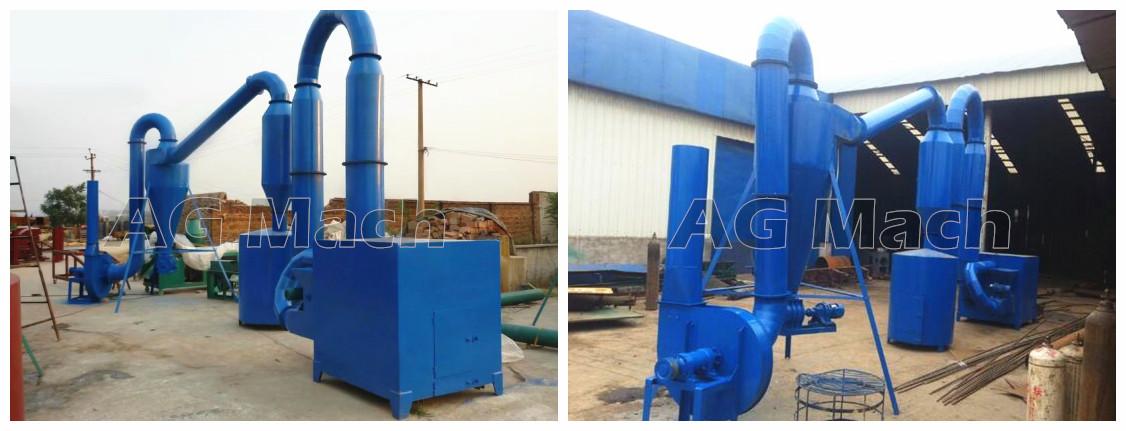

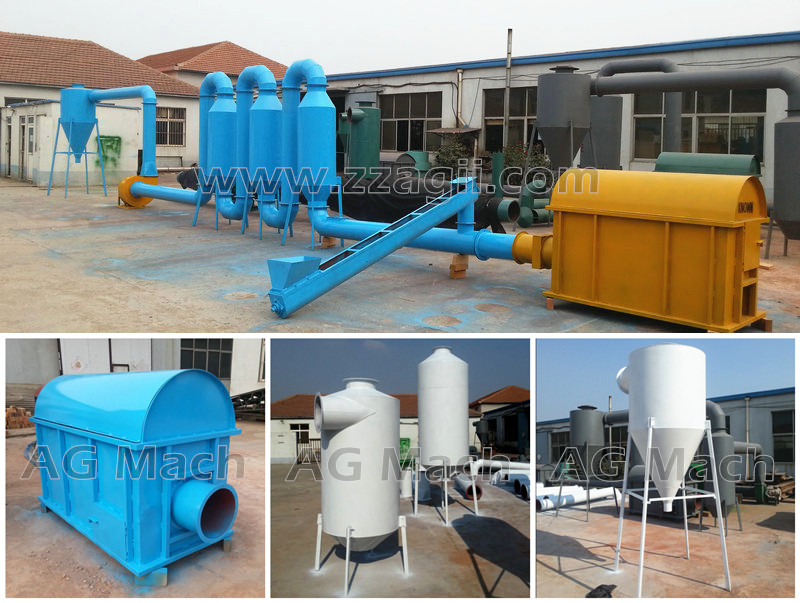

Detailed Images

Working Principle

1) Sawdust dryer include: heat furnace, the feed mouth, rotating cylinder, filter tube,

material conveying pipe, the cooling tube and the discharge port.

2) There is a feeding mouth between heat furnace and rotating cylinder.The rotating cylinder

has a stir-frying lamina.There is a baffle between rotating cylinder and the filter tube,

which also has a hole.The filter tube was connected with therotating cylinder at one end

and materials at the other end.There is a baffle in the filter tube and a slagging whole

at the bottom.The cooling tube was connected with the material conveying pipe at one end

and the discharge port at the other end.

3) As a result of the above-mentioned structure, so the sawdust can be fully dried in the

rotating cylinder and the sawdust can be fully spread again before delivering into the material

conveying pipe.The impurity can be blocked by the baffle,so the quality of the sawdust can be

guaranteed when it is in the material conveying pipe.Sawdust is ebullience fluidizd after the

action of the blowpipe and the cylindrical vessel.The utility model has a simple structure,

easy to use and so on.
