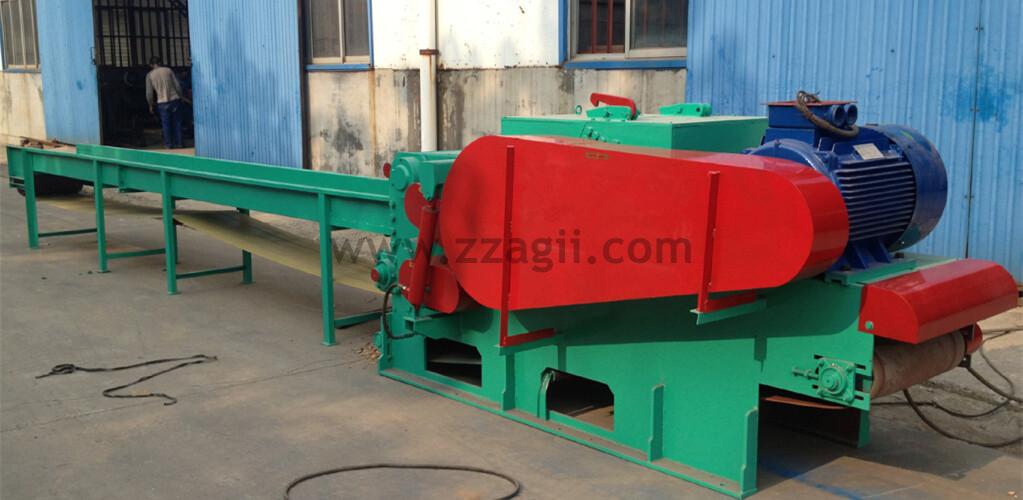

wood logs drum chipper

Product Description:

  • The drum chipper is the special equipment for producing the perfect chips.
  • It is used in paper plants, particle board plants, fiber-broad plants, chip production and export bases. the logs and small wood are cut into high quality with even length and uniform chip thickness.
  • It is also suitable for chipping of branches, twigs and planks. Cutting the main raw material of small diameter wood ,timber harvesting ,processing residues (such as branches ,twigs, slab, the log core veneer , waste),can also be used for cutting non-wood raw materials (such as sugar cane , reed , bamboo etc).


Structure & Operating principle:

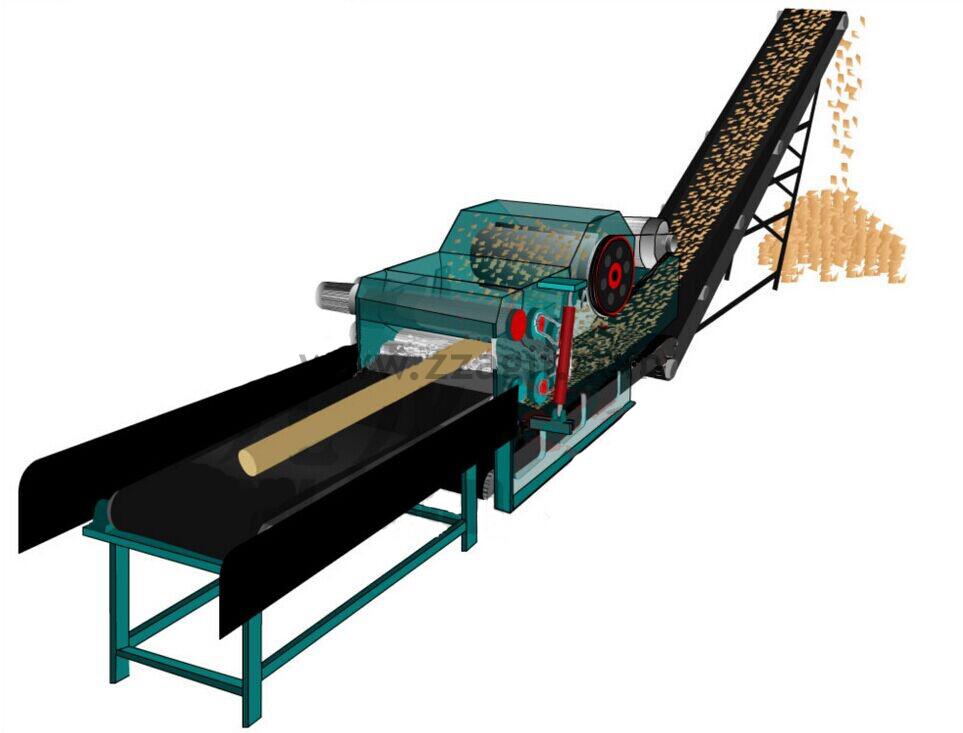

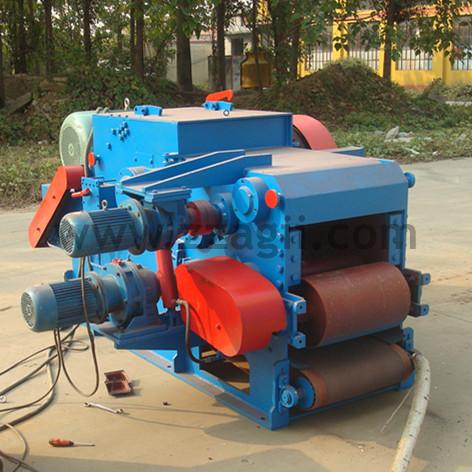

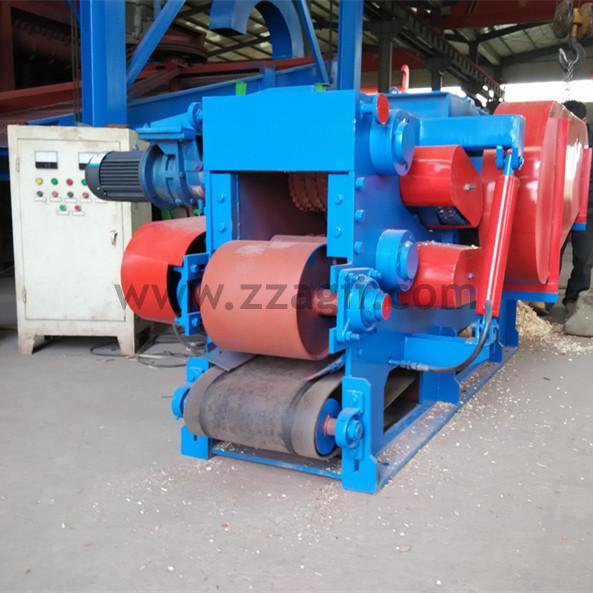

  • The drum wood chipper machine is composed of a machine body, a knife roller, upper and lower feed roller, conveyor belts, hydraulic system components.
  • Knife roller mounted on two or three, the four sword, used specially manufactured flying bolt, via a pressure block, knife fixed on the knife roller, according to the cutting material of varying thickness,
  • upper feed roll assembly can use hydraulic system in a certain range of floating up and down, cutting down the qualified materials through the sieve hole down, exhausted from the bottom, the sheet will be in the cutting machine.
  • The hydraulic system is composed of oil pump for oil cylinder can be activated to ,cover, easy blade replacement, the repair can lift the upper feeding roller assembly, is convenient for adjusting knife, knife at the end of the gap and the comb assembly.

Technical Data:

Model

BX-313

BX-315

BX-316

BX-318

BX-318

Main Power (kw)

30

45

55

110

110

Capacity (T/H)

2-3

3-5

8-12

15-25

15-25

Q鈥橳鈥橸 of flying blades (pcs)

4

4

4

4

5

Opener size (mm)

300x150

400x170

540x220

680x270

680x270

Input max diameter (mm)

130

150

200

250

250

Length of chips (mm)

10-20

10-20

10-20

15-25

10-15

Dimension of machine (m)

2.5*1.7*1.3

2.6*1.8*1.4

3.1*2*1.5

3.5*2.18*1.8

3.5*2.18*1.8

Weight of machine (kg)

2200

3380

4680

8320

9100

Feeding belt conveyor (m)

4x0.3

4x0.4

6x0.55

6x0.7

6x0.7

Discharging belt conveyor (m)

10x0.4

10x0.5

10x0.6

10x0.8

10x0.8
