Sawdust Briquette Extruder Biomass Birquette Press Making Machine


Product Description:


* ZBJ Series Wood Briquette Machine is a reliable way to make profit from agro-forestry wastes.

* It can produce hollow hexagonal or quadrangular cylinder briquettes with different diameters.

* Raw material: sawdust, wood chips, branches, crop stalks, sugarcane residue, coffee husk, paddy straw, sunflower stalk, cotton stalks, bamboo dust, palm husk, soybeans husk, tea waste, etc.

* Moisture content of Raw material: 8~12%;

* Size of Raw Material: 3~5mm


Technical Parameter:

CapacityMotorDiameter of BriquettesDimensionWeight
ZBJ-50A250-300 kg/h18.5kw48mm1.7*0.65*1.4m500kg

Raw material:

Raw material could be:

Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks,

peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust,

Mustard stalk and cotton stalks ,nutshell, coconut shell ,etc.

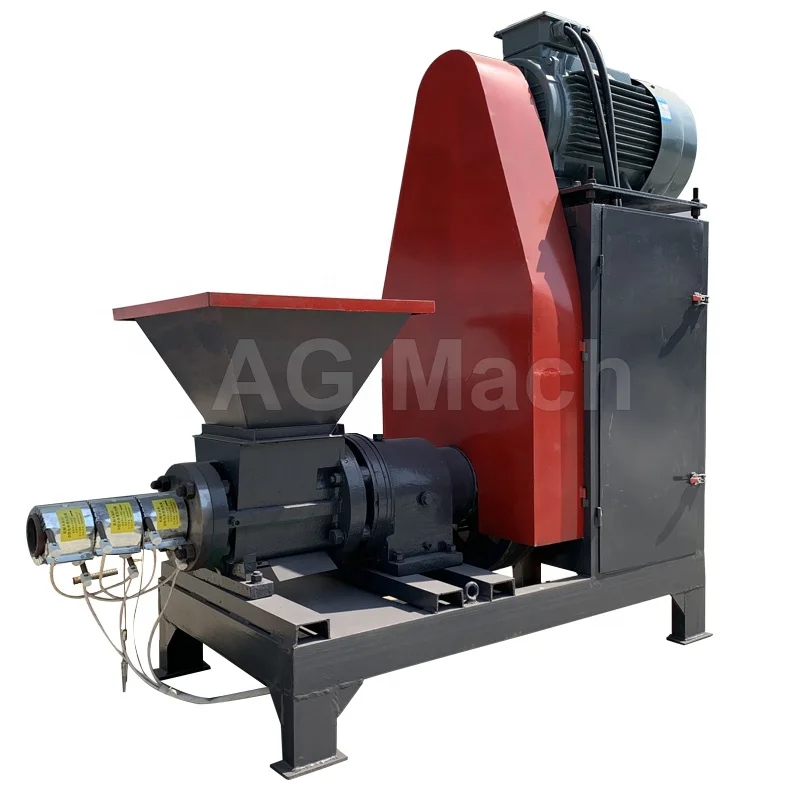

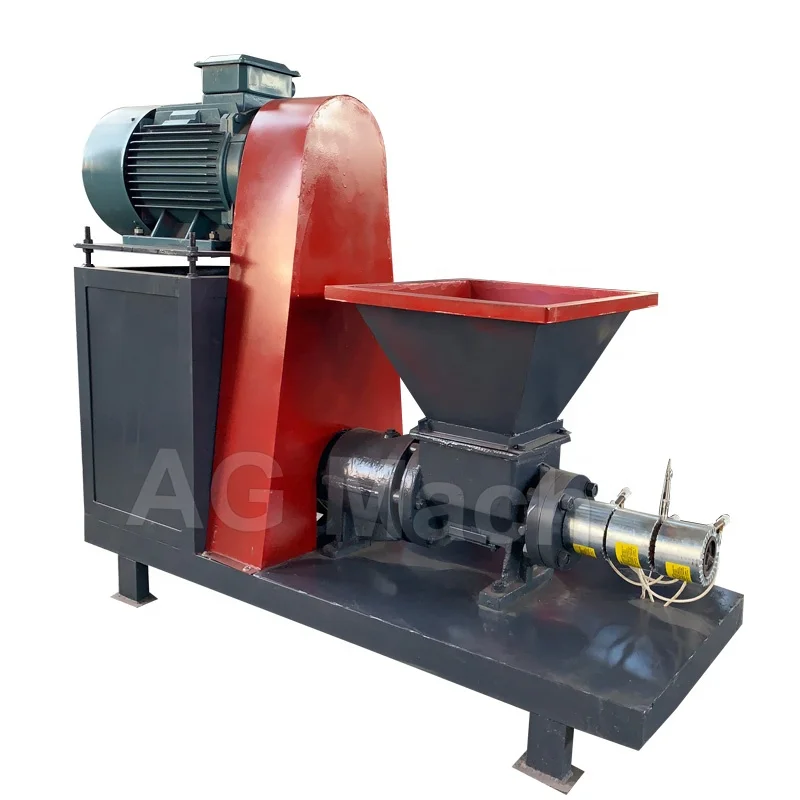

Different Models Briquette Machine:


              ZBJ-50A                               ZBJ-50B                                ZBJ-50C

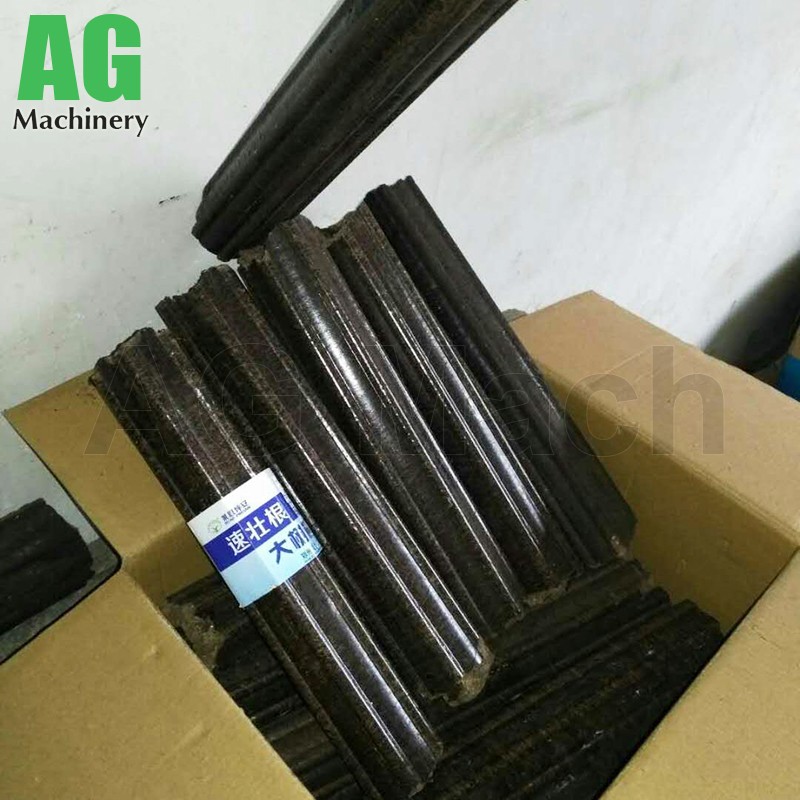

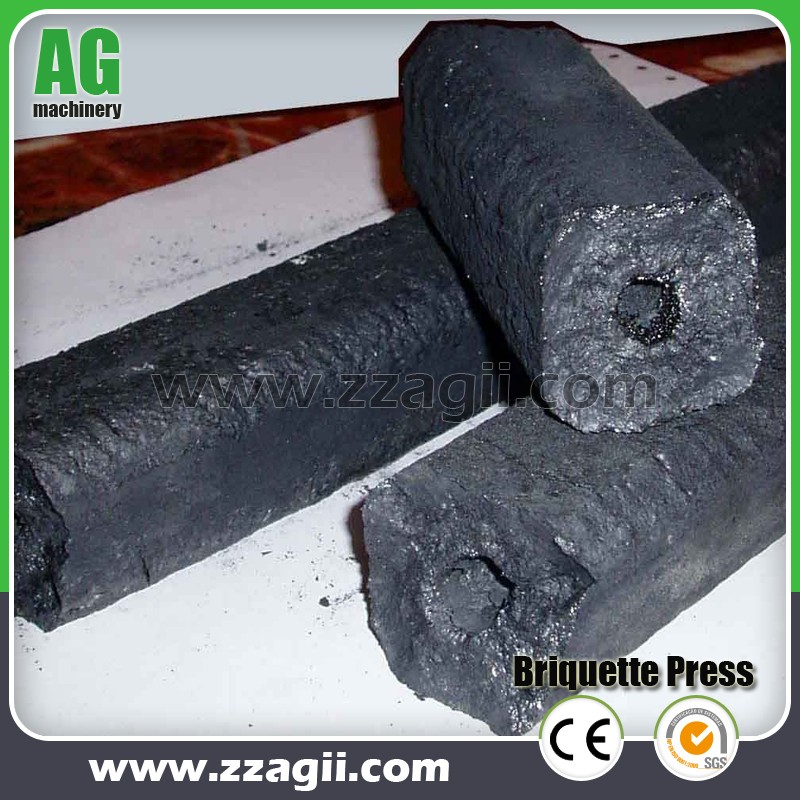

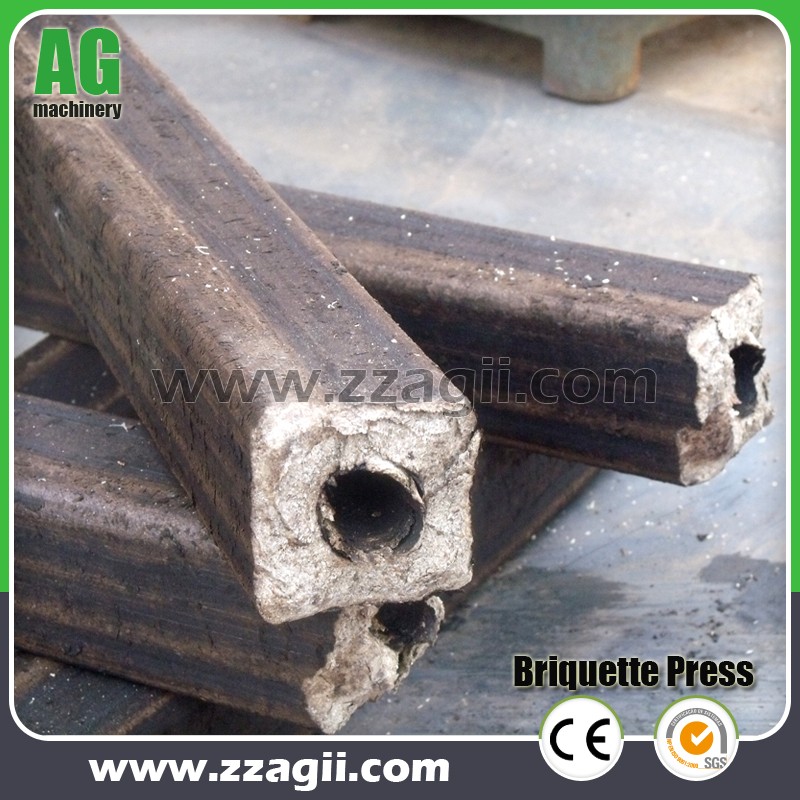

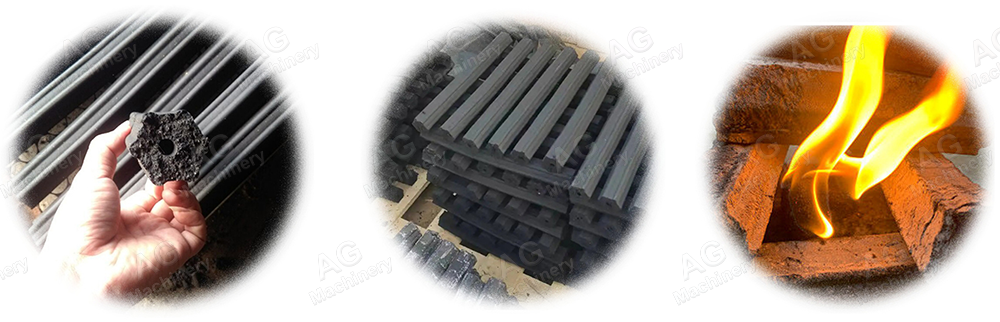

 Wood Briquettes:


1) This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.

2) The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge.

3) The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on.

4) The available length could be: 20cm,30cm, 40cm, 50cm.

5) Final Briquette : Specific gravity: 1300-1900kg/m   Calorific value: 4500-5000kcal/kg.



As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used as a substitute of any fuel in following fields:

1) Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries, Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..

2) Furnace & Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

3) Brick Kilns: It is the total, substitute of steam coal.

4) Residential & Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and house hold kitchen appliances etc.


Application in Charcoal Briquette Production Line:


Spare parts:

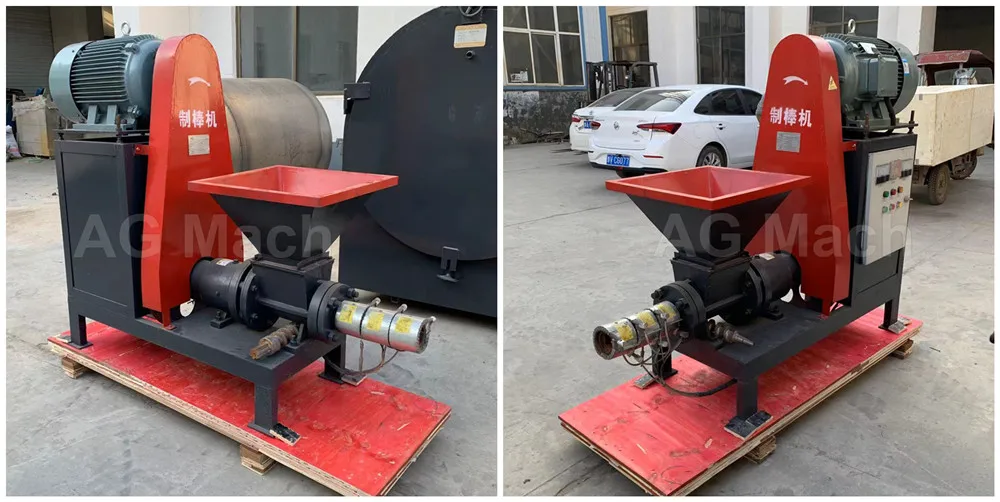

Packing & Delivery:
