Professional Briquette Machine To Make Wood Briquettes Briquette Extruder


Briquette Machine To Make Wood Briquettes Briquette Extruder


Product Description:

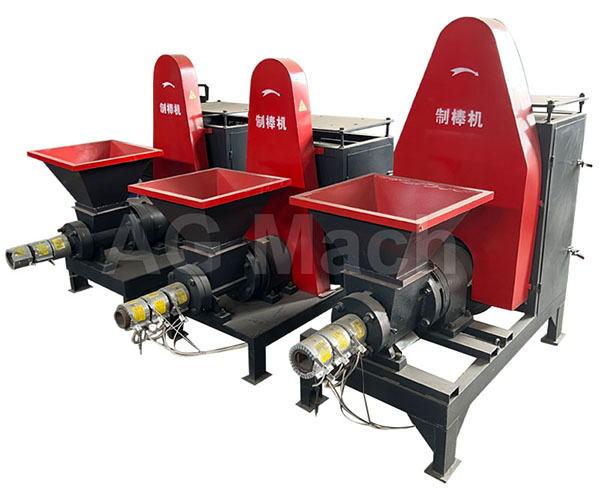

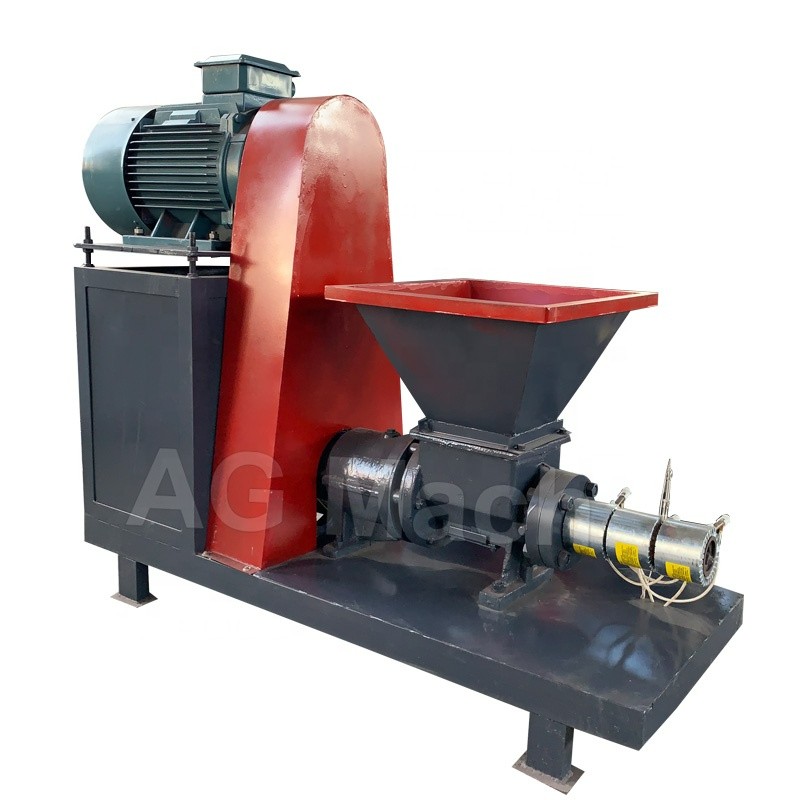

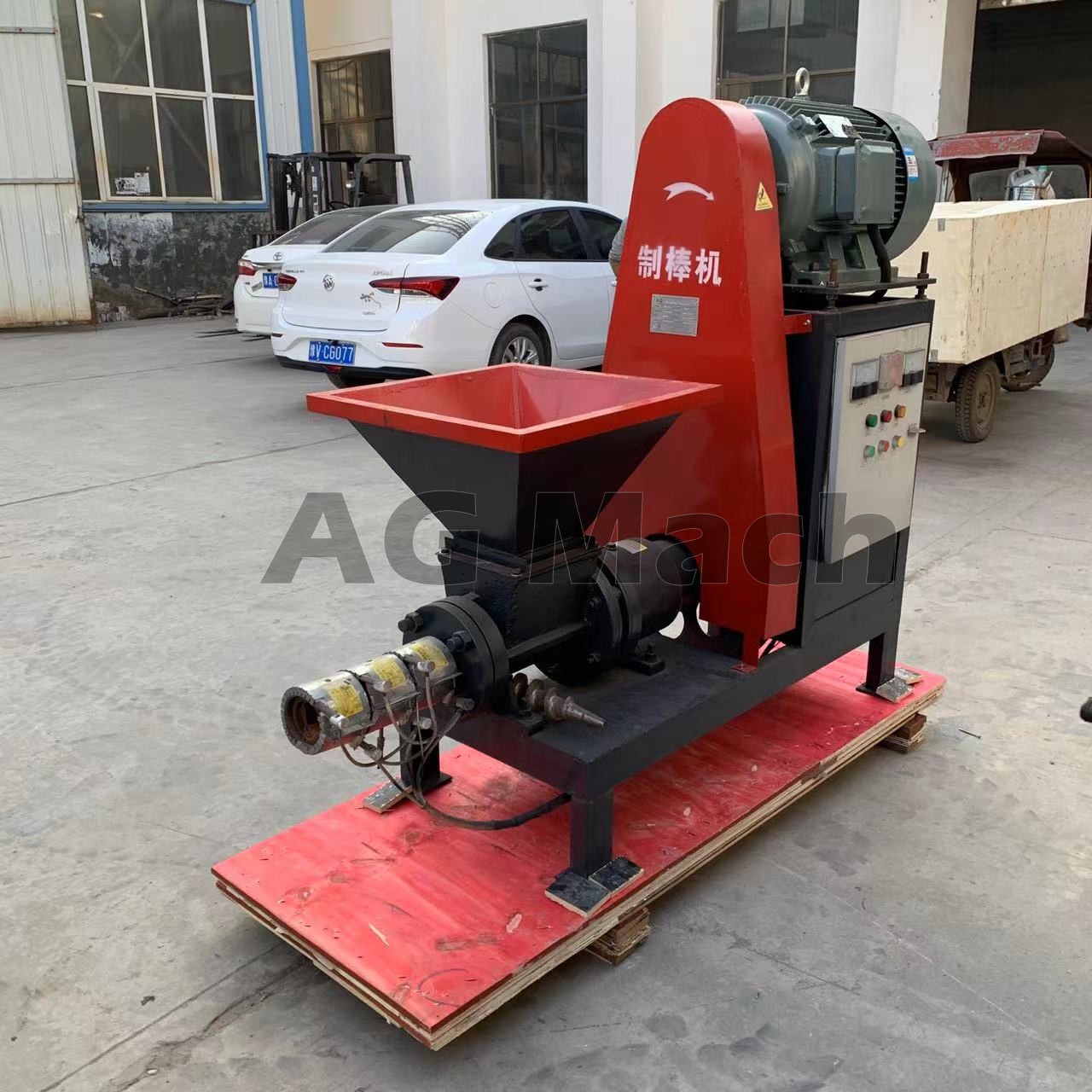

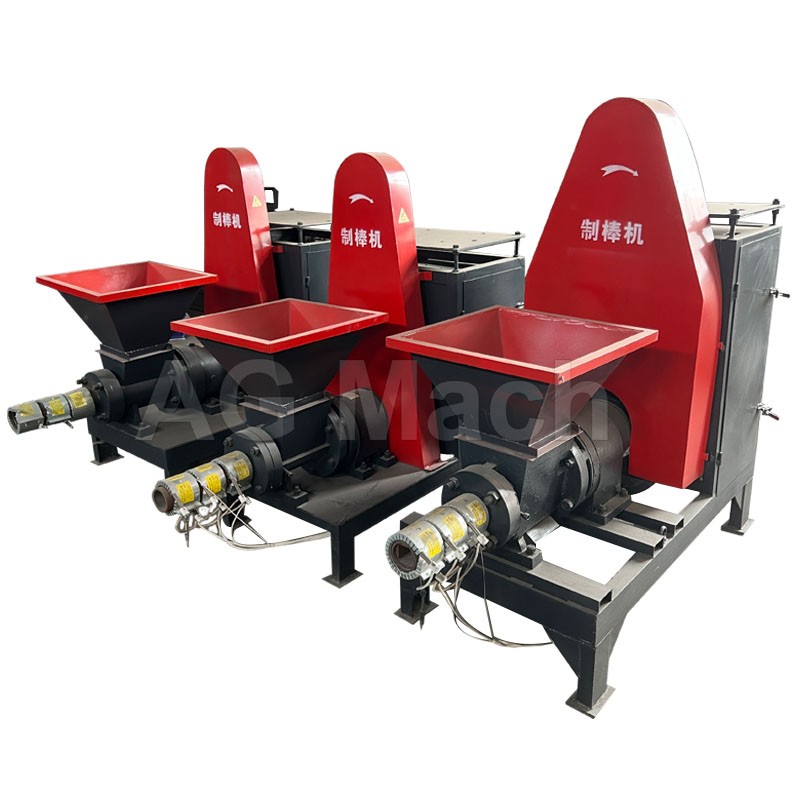

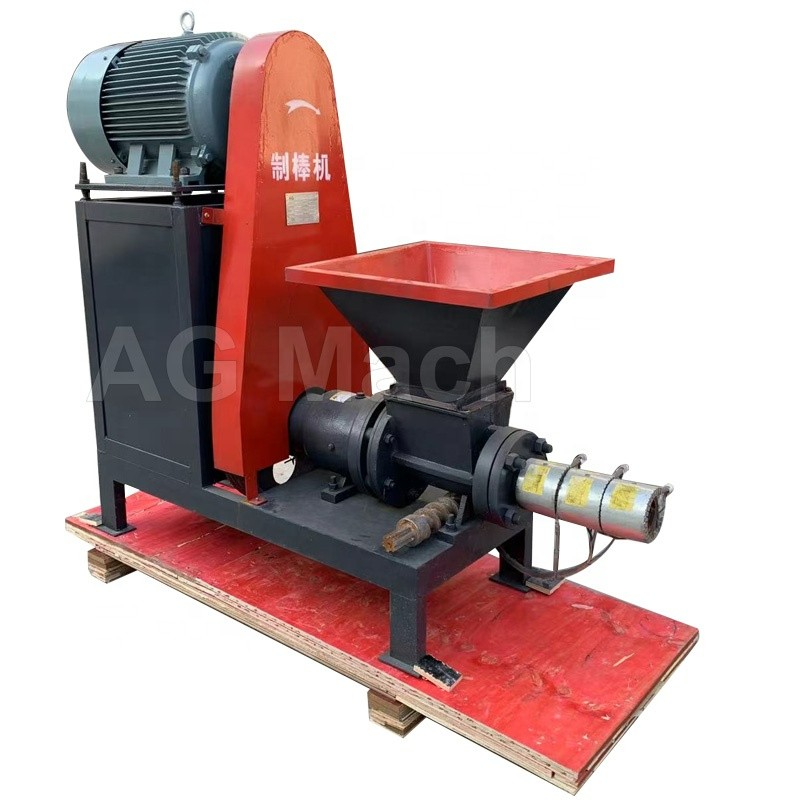

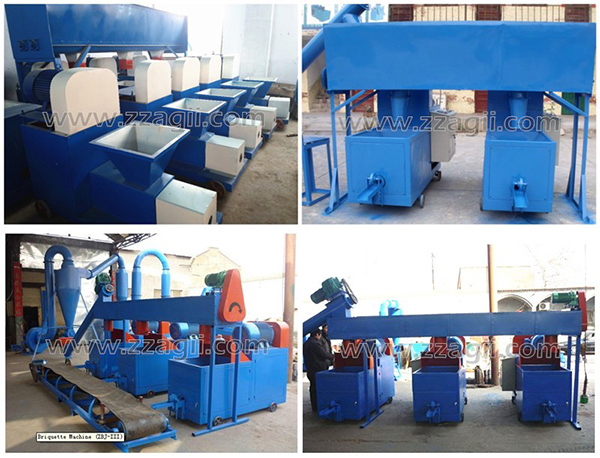

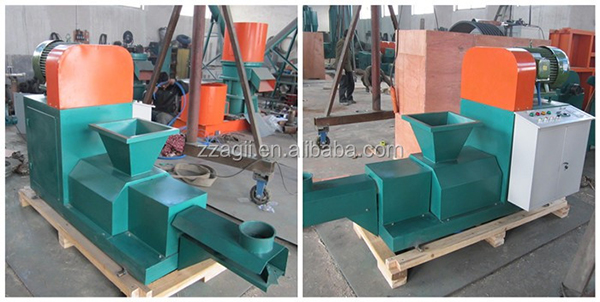

Introduction of Screw Briquette Machine:

Briquettes are made by grinding Biomass and sawdust into a homogeneous pulp and forming

this into a briquette under very high pressure. High pressure & pressing releases one of the natural

components of wood - lignin which has the property of becoming liquid at high pressure (temperature) and,

as it subsequently cools, it binds the wood together in its new form Briquettes.

After the processing of drying, compressing under the high pressure and temperature, the biomass briquette

 is characterized by high density, small in size, better combustion, capable as the substitute for the superior coal

or firewood. This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or hexagonal cylinder

 or hollow hexagonal with a 15-20mm hole through the body. The bio-fuel carbon maintains the cleanliness and hygiene,

 and is suitable for family heating and barbecuing.


Technical Parameter:






Diameter of

briquettes (mm)





ZBJ-50 (A)250~30015Ø 30,40,501.6*0.65*1.4800
ZBJ-50 (B)300~32018.5Ø 30,40,501.7*0.65*1.4900
ZBJ-50 (C)320~35022Ø 30,40,501.9*0.7*1.45950




As the need of pollution free environment, the product has a large scope of marketing. The briquettes can be used

as a substitute of any fuel in following fields:

1)  Boilers: It can be used in the boilers of Paper Mills, Sugar Mills, Dyeing houses, leather, lamination industries,

Vanaspati units, Food Processing Units, Oil Extraction Units, Solvent Extraction Plant and many other plants and industries..

2)  Furnace & Foundries: It can be used for metal heating & melting (where melting point is less than 1000d/cel.)

3)  Brick Kilns: It is the total, substitute of steam coal.

4)  Residential & Commercial Heating: For winter heating in Cold areas and Hotels, Canteens, Cafeterias and

house hold kitchen appliances etc.


Raw material could be:

Any types of Agro-forestry waste and forest waste can be used for make briquettes Such as maize stalks, soybean

stalks, broomcorn stalks, cotton stalks, rape stalks, peanut plants, sunflower stalks, bamboo sawdust, bagasse , wood

chips, rice husk, coffee husk, coir pith, jute sticks, groundnut shells, Bamboo, wood, straw dust, Mustard stalk and cotton

stalks,nutshell, coconut shell ,etc


Wood Briquettes:

1)   This bio-fuel briquette is 45-80mm in diameter, occurs in the hollow quadrangular or

hexagonal cylinder or hollow hexagonal with a 15-20mm inner-hole.

2)   The available shape: square, hexagonal, pentagon, pentagon with edge, hexagon with edge

3)    The available diameter could be: 50mm,55mm.60mm,65mm.70mm.80mm and so on

4)    The available length could be: 20cm,30cm, 40cm, 50cm

5)    Final Briquette : Specific gravity: 1300-1900kg/m   Calorific value: 4500-5000kcal/kg

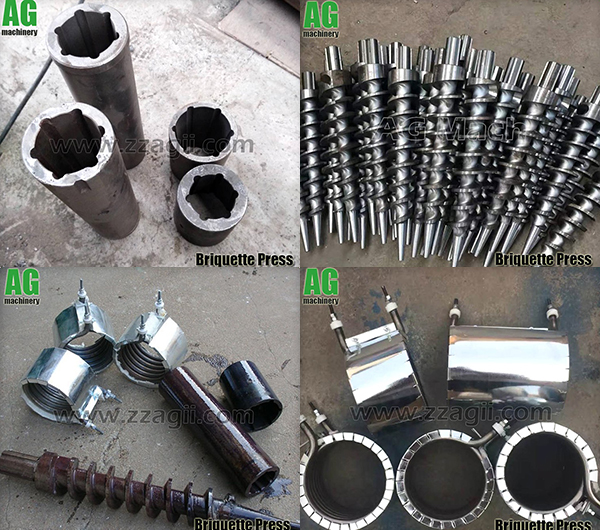

Spare parts:

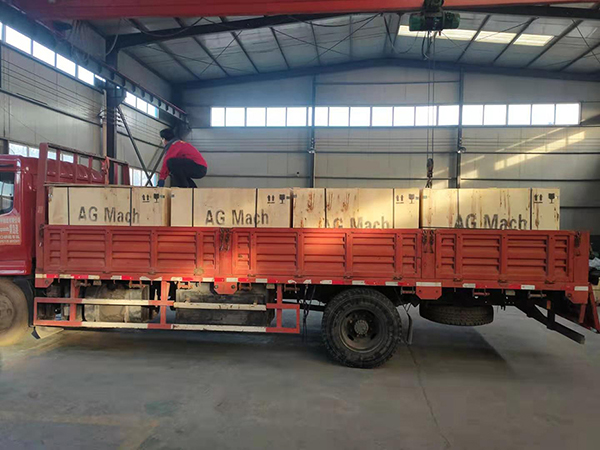

Packing & Delivery:
