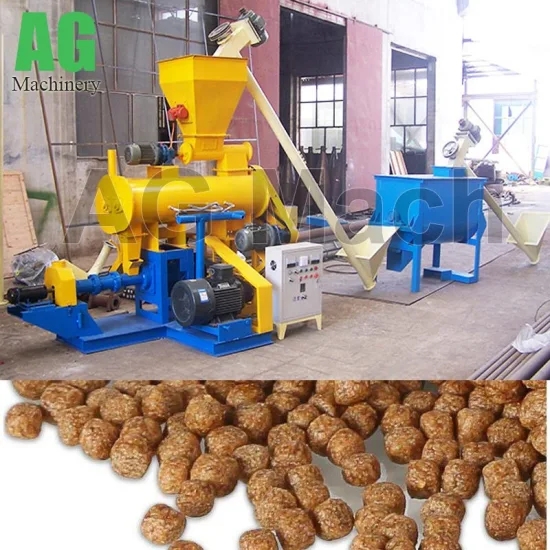

Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

EMAIL

Complete Animal Feed Pellet Making Line, Pet Food Machine, Floating Fish Feed Extruder Machine

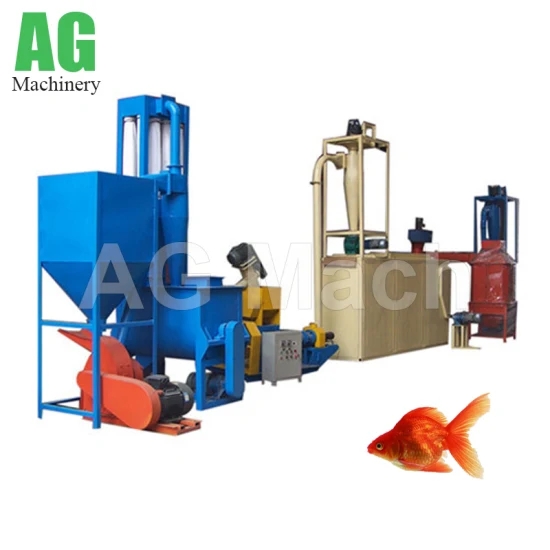

Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

Technical Parameters of Fish Food Processing Line:


No.EquipmentModelQTYRemarks
1Hammer Crusher9FQ-3201 set
  1. Motor: 5.5KW;

  2. Dimension: 1400*700*950 mm

  3. Dedusting Bin: 1.75KW + 1.75KW

  4. Silo Volume: 0.5CBM

2Vertical MixerVT-251 set
  1. Motor: 4KW

  2. Capacity: 25kg/batch;10-15mins per batch

3Screw ConveyorLS-2001 set
  1. Motor: 1.5KW

  2. Screw length: 3m

4Fish Feed ExtruderDGP-60C1 set
  1. Main Motor: 15KW

  2. Feeding power: 0.4KW

  3. Cutting power: 0.4KW

5Pneumatic conveyorYG-30001 set
  1. Fan power: 2.2KW

  2. Unloader power: 0.75KW

6Fish Feed DryerYG-1001 set
  1. Heating Power: 15KW

  2. Belt Power: 1.5kw

  3. Fan Power: 0.37KW

7Octagonal MixerPT-251 set
  1. Main power: 0.75kw

  2. oil pump power: 0.37kw

  3. Capacity: 25kg/batch; 4-5 mins per batch

8ControllerBK-11 set
  1. Control all the above equipments


Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

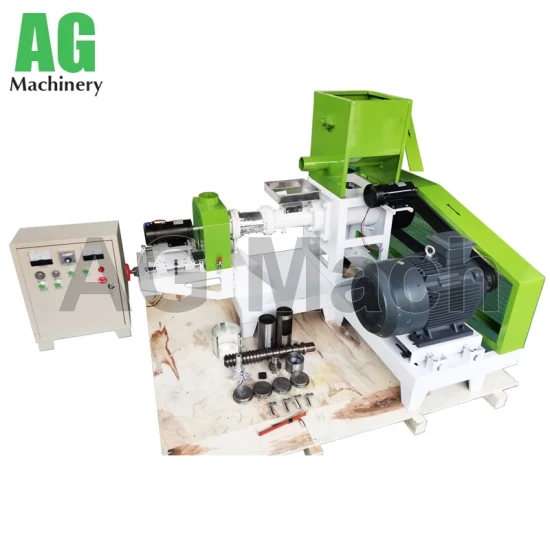

Technical Parameter of Fish Feed Extruder:


ModelCapacity
(kg/h)
Host power
(kw)
Feeding power
(kw)
Cutting power
(kw)
Screw diameter
(mm)
DGP 40-C30-405.50.40.4桅40
DGP 50-C60-80110.40.4桅50
DGP 60-C120-150150.40.4蠁60
DGP 70-B180-20018.50.40.4蠁70
DGP 80-B200-25022/270.41.1蠁80


Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

Introduction of Floating Fish Feed Machine:

1. The Animal Fish Feed Making Machine can make many kinds of fodder for different kinds of animal fodder.
It can make poultry-fodder, pet-fodder, as well as aquaculture fodder and fishery feed, which also called floating feed.

2. It is applied to the pretreatment of the animal fodder, so as to reduce loss of nutrition, advance the protein content   So the fodder will be digested easier by animals.

3. The poultry-fodder can feed chicken, rabbit, sheep, pig, and horse cattle and so on. The pet-fodder can feed dogs, cats, goldfish etc The Fishery-feed can feed the fish, shrimps, crab, eel, catfish, batrachians and so on.


Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

Features of fish feed pellet extruder:

1. Consists of dry method series and wet method series. We can design according to your requirements .

2. The fish feed puffing pellet can improve the nutrition composition and digestibility, is suitable for the fish's physiological characteristics of short gut, poor digestibility;

3. Puffing fish feed pellet can float on the water about two days

Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine

Advantages of the Fish/Dog/Cat Food Machine:

1. We can adjust the cutter of floating fish feed pellet mill to get different diameter and the length

2.The Electric heating device improve the feed expansion rate.

3. High temperature and high pressure can kill the salmonellosis and bacterial infections.

4. The automatic floating fish feed pellet processing machine can float in water for 12 hours.

5. This puffing feed extrusion machine can make various grain wastes into animal feed pellets with rich nutrition and easy digestion.

6. Not only for making fish feed pellets, but also suitable for making feed pellets for dog, cat, bird,

7. Popular with animal breeders, medium sized feed stuff factory
.

Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine


Applicable Raw material & Fish feed pellets:

Raw grain, soybeans, soybean meal, corn, amino acids, miscellaneous meals, additives, whey powder, fats, meat and bone meal, grains, etc.

Complete Animal Feed Fish Food Processing Line, Fish Feed Pelletizing Machine, Pet Food Machine


Welcome to visit our factory!
