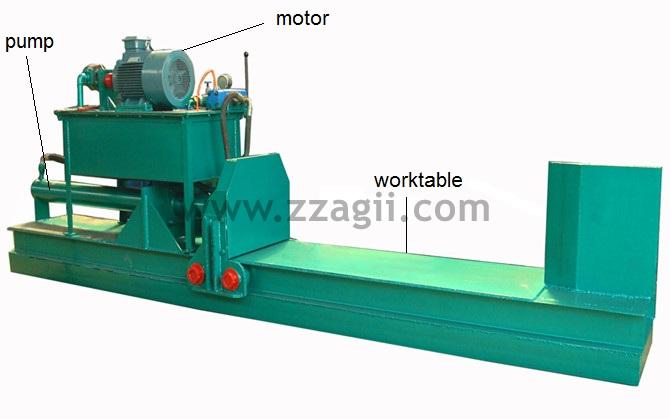

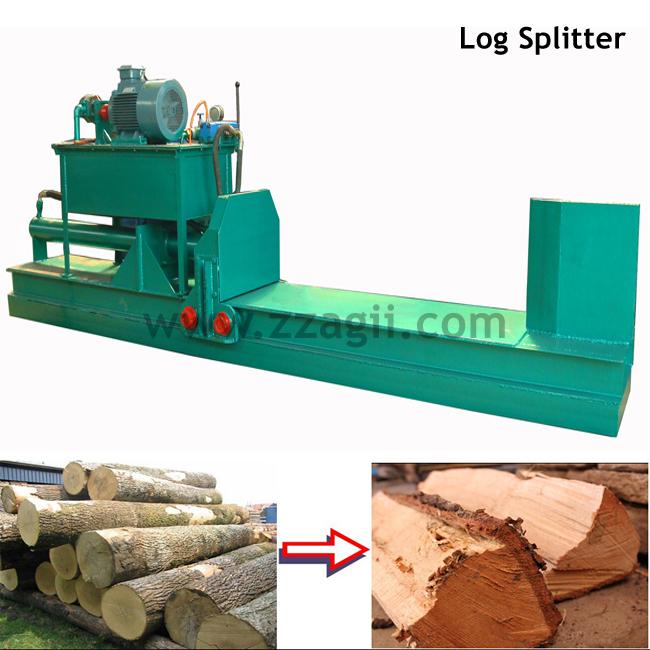

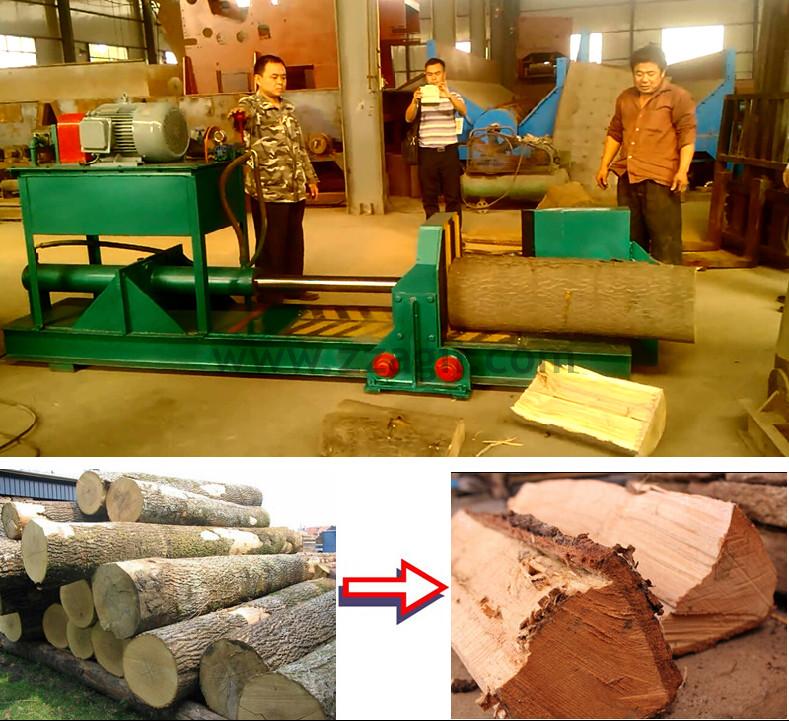

Automatic mechanical timber log wood splitting machine
- The horizontal type splitter is more convenient to operate. the hydraulic system is fixed to the machine body, so it doesn鈥檛 need to be installed before use;
- The power can be electric motor or diesel engine depends on customers' need.
- We also can design it to be mobile type with tires which can be attached to tractor or car.
- The length of the work table has 3 dimension-1000mm, 1200mm and 1500mm.
- The nominal pressure of cylinder is 30ton, 40ton, 50ton and etc; depend on different model.
- We can design the splitter with different pressure according to the customers' request.
|
Model |
Working platform size |
Max. Log Length |
Max Log Diameter |
Power |
Oil cylinder pressure |
Overall size |
Weight |
|
WP-800 |
800*600 mm |
800mm |
500mm |
7.5KW |
30 tons |
2800*600*1100mm |
1200kg |
|
WP-1000 |
1000*600 mm |
1000mm |
650mm |
11KW |
35 tons |
3100*600*1200mm |
1400kg |
|
WP-1200 |
1200*600 mm |
1200mm |
980mm |
15KW |
40 tons |
3400*650*1300mm |
1800kg |
|
WP-1500 |
1500*850 mm |
1500mm |
1200mm |
18.5KW |
45 tons |
4200*1100*1500mm |
2400kg |
